Device Type

Mainboard

Processor

Pentium II/Pentium III

Processor Speed

233/266/300/333/366/350/400/450MHz

Chip Set

Intel 440BX

Maximum Onboard Memory

512MB (SDRAM & PC100 supported)

Cache

256/512KB (located on the CPU)

BIOS

Award

Dimensions

305mm x 250mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide Ultra SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, RAID slot, SB-link connector, wake on LAN connector

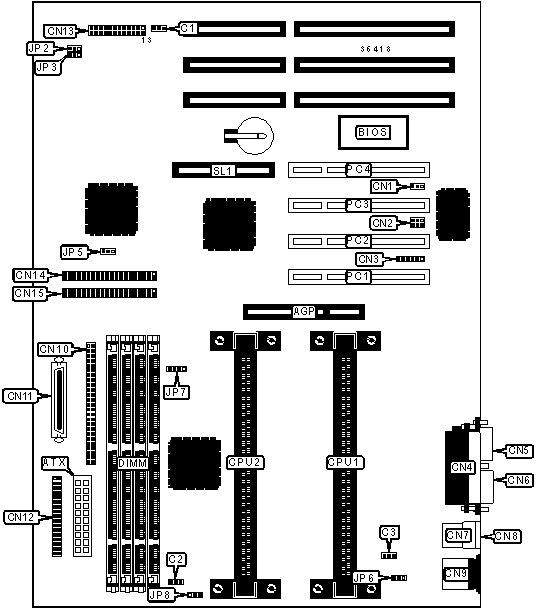

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Ultra Wide SCSI interface

CN11

ATX power connector

ATX

Floppy drive interface

CN12

Chassis fan power

C1

Turbo switch

CN13/pins 1 & 2

CPU fan power

C2

Green PC connector

CN13/pins 4 & 5

CPU fan power

C3

Green PC LED

CN13/pins 6 & 7

Wake on LAN connector

CN1

Reset switch

CN13/pins 9 & 10

SB-link connector

CN2

IDE/SCSI interface LED

CN13/pins 11 & 12

IR connector

CN3

Power LED & keylock

CN13/pins 13 - 17

Parallel port

CN4

Speaker

CN13/pins 18 - 21

Serial port 2

CN5

Soft off power supply

CN13/pins 22 & 23

Serial port 1

CN6

IDE interface

CN14

USB connector 1

CN7

IDE interface

CN15

USB connector 2

CN8

32-bit PCI slots

PC1 - PC4

PS/2 mouse port

CN9

RAID slot

SL1

SCSI interface

CN10

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP2

Pins 1 & 2 closed

CMOS memory clear

JP2

Pins 2 & 3 closed

»

Power failure recovery disabled

JP3

Pins 1 & 2 closed

Power failure recovery enabled

JP3

Pins 2 & 3 closed

»

On board SCSI enabled

JP5

Pins 1 & 2 closed

On board SCSI disabled

JP5

Pins 2 & 3 closed

»

Keyboard power on disabled

JP6

Pins 1 & 2 closed

Keyboard power on enabled

JP6

Pins 2 & 3 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

None

16MB

(1) 2M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

24MB

(1) 2M x 64

(1) 1M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

None

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

40MB

(1) 4M x 64

(1) 1M x 64

None

None

48MB

(1) 4M x 64

(1) 2M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

72MB

(1) 8M x 64

(1) 1M x 64

None

None

80MB

(1) 8M x 64

(1) 2M x 64

None

None

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

128MB

(1) 16M x 64

None

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

136MB

(1) 16M x 64

(1) 1M x 64

None

None

144MB

(1) 16M x 64

(1) 2M x 64

None

None

152MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

None

176MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

224MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

320MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

Note: Board accepts SDRAM & PC100 memory. The location of the banks is unidentified.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU. 512KB cache is located on the Pentium III CPU.

CPU CLOCK FREQUENCY SELECTION

Speed

JP7

Auto detect

Pins 1 & 2 closed

66MHz

Pins 2 & 3 closed

100MHz

Pins 3 & 4 closed
