AZZA
PT-5VML
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ CX MII/AM K5/AM K6/AM K6-2/AM K6 3D/IDT C6/Pentium/ Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/200/225/233/240/266/300/MHz |
|
Chip Set |
VIA MVP3 |
|
Maximum Onboard Memory |
1GB (EDO & SDRAM supported) |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
32-bit PCI slots port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, AGP slot |
|

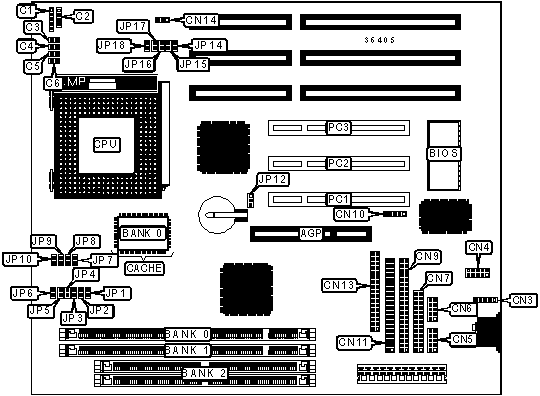

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Serial port 1 |
CN5 |
|
Power LED & keylock |
C1 |
Serial port 2 |
CN6 |
|
Speaker |
C2 |
Parallel port |
CN7 |
|
Green PC connector |
C3 |
IDE interface 2 |
CN9 |
|
Turbo LED |
C4 |
IR connector |
CN10 |
|
IDE interface LED |
C5 |
IDE interface 1 |
CN11 |
|
Reset switch |
C6 |
Floppy drive interface |
CN13 |
|
PS/2 mouse interface |
CN3 |
CPU fan power |
CN14 |
|
USB connector |
CN4 |
32-bit PCI slots |
PC1 - PC4 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
JP12 |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JP12 |
Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
|
|
Size |
Bank 2 |
|
8MB |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
|
256MB |
(2) 32M x 36 |
|
512MB |
(2) 64M x 36 |
|
Note: Board accepts EDO memory. |
|
|
DIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
DIMM CONFIGURATION (CON'T) |
||
|
Size |
Bank 0 |
Bank 1 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
256MB |
(1) 32M x 64 |
None |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: Board accepts SDRAM memory. |
||
|
SDRAM CLOCK SELECTION |
||
|
Setting |
JP7 |
JP8 |
|
SDRAM clock = CPU clock |
Open |
Closed |
|
SDRAM clock = AGP clock |
Closed |
Open |
|
CACHE CONFIGURATION |
|
|
Size |
Bank 0 |
|
512KB |
(1) 64K x 64 |
|
CPU SPEED SELECTION (CX 6X86) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (CX 6X86, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
150MHz |
60MHz |
2x |
Open |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
CPU SPEED SELECTION (IBM 6X86) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (IBM 6X86, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
150MHz |
60MHz |
2x |
Open |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
CPU SPEED SELECTION (CX 6X86L) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (CX 6X86, CON'TL) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
150MHz |
60MHz |
2x |
Open |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
CPU SPEED SELECTION (IBM 6X86L) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (IBM 6X86L, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
150MHz |
60MHz |
2x |
Open |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
CPU SPEED SELECTION (CX 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
200MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
233MHz |
75MHz |
2.5x |
Closed |
Closed |
Open |
Closed |
|
233MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
266MHz |
83MHz |
2.5x |
Open |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (CX 6X86MX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
200MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
233MHz |
75MHz |
2.5x |
Closed |
Open |
Open |
Open |
|
233MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
266MHz |
83MHz |
2.5x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (IBM 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Closed |
Closed |
Open |
Closed |
|
200MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
233MHz |
75MHz |
2.5x |
Closed |
Closed |
Open |
Closed |
|
233MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
266MHz |
83MHz |
2.5x |
Open |
Closed |
Open |
Closed |
|
CPU SPEED SELECTION (IBM 6X86MX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
166MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
200MHz |
75MHz |
2x |
Open |
Open |
Open |
Open |
|
200MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
233MHz |
75MHz |
2.5x |
Closed |
Open |
Open |
Open |
|
233MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
266MHz |
83MHz |
2.5x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (CX MII) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
266MHz |
83MHz |
2.5x |
Open |
Closed |
Open |
Closed |
|
300MHz |
66MHz |
3.5x |
Open |
Closed |
Closed |
Open |
|
300MHz |
75MHz |
3x |
Closed |
Closed |
Open |
Open |
|
CPU SPEED SELECTION (CX MII, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
266MHz |
83MHz |
2.5x |
Closed |
Open |
Open |
Open |
|
300MHz |
66MHz |
3.5x |
Open |
Open |
Closed |
Closed |
|
300MHz |
75MHz |
3x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (IDT C6) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
180MHz |
60MHz |
3x |
Closed |
Closed |
Closed |
Open |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
225MHz |
75MHz |
3x |
Closed |
Closed |
Open |
Open |
|
240MHz |
60MHz |
4x |
Closed |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (IDT C6, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
180MHz |
60MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
225MHz |
75MHz |
3x |
Closed |
Open |
Open |
Open |
|
240MHz |
60MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K5) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
90MHz |
60MHz |
1.5x |
Closed |
Closed |
Closed |
Open |
|
100MHz |
66MHz |
1.5x |
Open |
Closed |
Closed |
Open |
|
120MHz |
60MHz |
1.5x |
Closed |
Closed |
Closed |
Open |
|
133MHz |
66MHz |
1.5x |
Open |
Closed |
Closed |
Open |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K5, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
Closed |
Closed |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
Closed |
Closed |
|
120MHz |
60MHz |
1.5x |
Open |
Open |
Closed |
Closed |
|
133MHz |
66MHz |
1.5x |
Open |
Closed |
Closed |
Open |
|
150MHz |
60MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
233MHz |
66MHz |
3.5x |
Open |
Closed |
Closed |
Open |
|
266MHz |
66MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
300MHz |
66MHz |
4.5x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
233MHz |
66MHz |
3.5x |
Open |
Open |
Closed |
Closed |
|
266MHz |
66MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
300MHz |
66MHz |
4.5x |
Closed |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6-2) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
300MHz |
66MHz |
4.5x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6-2, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
300MHz |
66MHz |
4.5x |
Closed |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6 3D) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
300MHz |
66MHz |
4.5x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (AM K6 3D, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
300MHz |
66MHz |
4.5x |
Closed |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (INTEL) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
90MHz |
60MHz |
1.5x |
Closed |
Closed |
Closed |
Open |
|
100MHz |
66MHz |
1.5x |
Open |
Closed |
Closed |
Open |
|
120MHz |
60MHz |
2x |
Closed |
Closed |
Closed |
Closed |
|
133MHz |
66MHz |
2x |
Open |
Closed |
Closed |
Closed |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
CPU SPEED SELECTION (INTEL, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
Closed |
Closed |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
Closed |
Closed |
|
120MHz |
60MHz |
2x |
Open |
Open |
Closed |
Closed |
|
133MHz |
66MHz |
2x |
Open |
Open |
Closed |
Closed |
|
150MHz |
60MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
CPU SPEED SELECTION (INTEL MMX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
233MHz |
66MHz |
3.5x |
Open |
Closed |
Closed |
Open |
|
CPU SPEED SELECTION (INTEL MMX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
200MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Closed |
|
233MHz |
66MHz |
3.5x |
Open |
Open |
Closed |
Closed |
|
CPU VOLTAGE SELECTION |
|||||
|
Voltage |
JP14 |
JP15 |
JP16 |
JP17 |
JP18 |
|
1.6v |
Open |
Closed |
Closed |
Open |
Closed |
|
1.7v |
Open |
Open |
Open |
Closed |
Closed |
|
1.8v |
Open |
Closed |
Open |
Closed |
Closed |
|
1.9v |
Open |
Open |
Closed |
Closed |
Closed |
|
2.0v |
Open |
Open |
Open |
Open |
Open |
|
2.1v |
Closed |
Open |
Open |
Open |
Open |
|
2.2v |
Open |
Closed |
Open |
Open |
Open |
|
2.3v |
Closed |
Closed |
Open |
Open |
Open |
|
2.4v |
Open |
Open |
Closed |
Open |
Open |
|
2.5v |
Closed |
Open |
Closed |
Open |
Open |
|
2.6v |
Closed |
Closed |
Open |
Open |
Open |
|
2.7v |
Closed |
Closed |
Closed |
Open |
Open |
|
2.8v |
Open |
Open |
Open |
Closed |
Open |
|
2.9v |
Closed |
Open |
Open |
Closed |
Open |
|
3.0v |
Open |
Closed |
Open |
Closed |
Open |
|
3.1v |
Closed |
Closed |
Open |
Closed |
Open |
|
3.2v |
Open |
Open |
Closed |
Closed |
Open |
|
3.3v |
Closed |
Open |
Closed |
Closed |
Open |
|
3.4v |
Open |
Closed |
Closed |
Closed |
Open |
|
3.5v |
Closed |
Closed |
Closed |
Closed |
Open |
