Device Type

Mainboard

Processor

Pentium II/Celeron

Processor Speed

233/266/300/333MHz

Chip Set

Intel 440EX

Maximum Onboard Memory

512MB (EDO & SDRAM supported)

Audio Chip Set

ALS

Cache

0/128/256/512KB (located on the CPU)

BIOS

Award

Dimensions

240mm x 220mm

I/O Options

32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (2), SB-link connector, wake on LAN connector

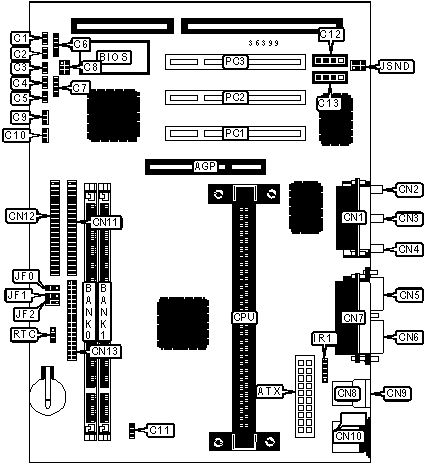

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Game/MIDI port

CN1

ATX power connector

ATX

Microphone in

CN2

Green PC LED

C1

Line in

CN3

Reset switch

C2

Line out

CN4

IDE interface LED

C3

Serial port 2

CN5

Soft off power supply

C4

Serial port 1

CN6

Green PC connector

C5

Parallel port

CN7

Power LED & keylock

C6

USB connector 1

CN8

Speaker

C7

USB connector 2

CN9

SB-link connector

C8

PS/2 mouse port

CN10

Wake on LAN connector

C9

IDE interface 2

CN11

Chassis fan power

C10

IDE interface 1

CN12

CPU fan power

C11

Floppy drive interface

CN13

Audio in - CD-ROM

C12

IR connector

IR1

Audio in - CD-ROM

C13

32-bit PCI slots

PC1 - PC3

USER CONFIGURABLE SETTINGS

Function

Label

Position

On board sound enabled

JSND

Pins 1 & 3, 2 & 4 closed

On board sound disabled

JSND

Pins 3 & 5, 4 & 6 closed

»

CMOS memory normal operation

RTC

Pins 2 & 3 closed

CMOS memory clear

RTC

Pins 1 & 2 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JF0

JF1

JF2

233MHz

66MHz

3.5x

1 & 2

2 & 3

2 & 3

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

300MHz

66MHz

4.5x

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.
