SOLTEK COMPUTER, INC.
SL-56F1, SL56F5
|
Device Type |
Mainboard |
|
Processor |
CX 686MX/IBM 6X86MX/CX MII/IBM MII/AM K5/AM K6-2/ AM K6-III//Pentium |
|
Processor Speed |
133/166/200/225/233/240/266/300/333/350/380/400/450MHz |
|
Chip Set |
VIA VT |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
768MB (SDRAM & PC100 supported)(Unified Memory Architecture UMA) |
|
Audio Chip Set |
Unidentified |
|
Cache |
Unidentified |
|
BIOS |
Award |
|
Dimensions |
305mm x 190mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (3), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), wake on LAN connector |
|

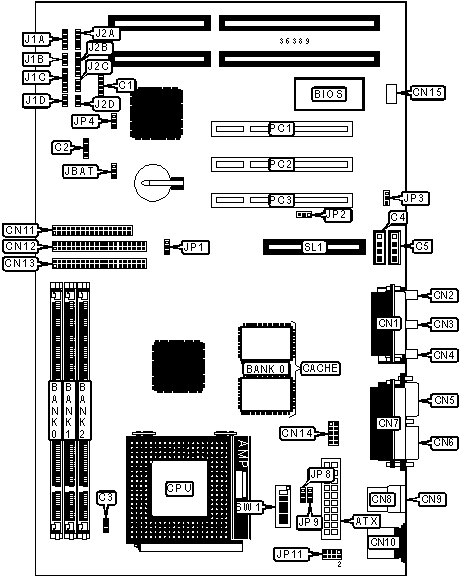

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
VGA feature connector |
ATX |
Floppy drive interface |
CN11 |
|
Wake on LAN connector |
C1 |
IDE interface 1 |
CN12 |
|
Chassis fan power |
C2 |
IDE interface 2 |
CN13 |
|
CPU fan power |
C3 |
Serial port 2 |
CN14 |
|
Audio in - CD-ROM |
C4 |
USB connector 3 |
CN15 |
|
Audio in - CD-ROM |
C5 |
IDE interface LED |
J1A |
|
Game/MIDI port |
CN1 |
IR connector |
J1B |
|
Microphone in |
CN2 |
Soft off power supply |
J1C |
|
Line in |
CN3 |
Green PC connector |
J1D |
|
Line out |
CN4 |
Speaker |
J2A |
|
VGA port |
CN5 |
Reset switch |
J2B |
|
Serial port 1 |
CN6 |
Power LED & keylock |
J2C |
|
Parallel port |
CN7 |
Green PC LED |
J2D |
|
USB connector 1 |
CN8 |
32-bit PCI slots |
PC1 - PC3 |
|
USB connector 2 |
CN9 |
AMR slot |
SL1 |
|
PS/2 mouse port |
CN10 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
JBAT |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JBAT |
Pins 2 & 3 closed |
|
|
CPU clock select <100MHz |
JP1 |
Pins 1 & 2 closed |
|
|
CPU clock select >100MHz |
JP1 |
Pins 2 & 3 closed |
|
» |
Power lost normal operation |
JP4 |
Pins 1 & 2 closed |
|
|
Power lost enabled |
JP4 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
DIMM CONFIGURATION (CON'T) |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 32M x 64 |
None |
None |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
None |
|
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
|
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
|
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
|
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: Board accepts SDRAM & PC100 memory. |
|||
|
CACHE CONFIGURATION |
|
Note: the size of the cache is unidentified. |
|
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
On |
On |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3x |
On |
Off |
Off |
Off |
On |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
266MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
Off |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (IBM 6X86MX) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
On |
On |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3x |
On |
Off |
Off |
Off |
On |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
266MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
Off |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (CX MII) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
333MHz |
66MHz |
4x |
On |
Off |
Off |
On |
Off |
On |
|
333MHz |
75MHz |
3.5x |
On |
On |
Off |
Off |
Off |
Off |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
Off |
On |
Off |
|
333MHz |
100MHz |
2.5x |
On |
On |
On |
On |
On |
Off |
|
350MHz |
83MHz |
3.5x |
On |
Off |
On |
Off |
Off |
Off |
|
350MHz |
100MHz |
3x |
On |
On |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (IBM MII) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
333MHz |
66MHz |
4x |
On |
Off |
Off |
On |
Off |
On |
|
333MHz |
75MHz |
3.5x |
On |
On |
Off |
Off |
Off |
Off |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
Off |
On |
Off |
|
333MHz |
100MHz |
2.5x |
On |
On |
On |
On |
On |
Off |
|
350MHz |
83MHz |
3.5x |
On |
Off |
On |
Off |
Off |
Off |
|
350MHz |
100MHz |
3x |
On |
On |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (IDT C6) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
225MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
240MHz |
66MHz |
4x |
On |
Off |
Off |
On |
Off |
On |
|
266MHz |
100MHz |
5.5x |
On |
On |
On |
Off |
Off |
On |
|
CPU SPEED SELECTION (AM K5) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K6-2) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
100MHz |
3x |
On |
On |
On |
Off |
On |
Off |
|
333MHz |
95MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
350MHz |
100MHz |
3.5x |
On |
On |
On |
Off |
Off |
Off |
|
380MHz |
95MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
400MHz |
100MHz |
4x |
On |
On |
On |
On |
Off |
On |
|
CPU SPEED SELECTION (AM K6-III) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
400MHz |
100MHz |
4x |
On |
On |
On |
On |
Off |
On |
|
450MHz |
100MHz |
4.5x |
On |
On |
On |
On |
On |
On |
|
CPU SPEED SELECTION (INTEL) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
Off |
On |
Off |
|
CPU TYPE SELECTION |
||
|
Type |
JP8 |
JP9 |
|
Single voltage |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Dual voltage |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CPU VOLTAGE SELECTION |
||||
|
Voltage |
JP1/pins 1 & 2 |
JP1/pins 3 & 4 |
JP1/pins 5 & 6 |
JP1/pins 7 & 8 |
|
2.0v |
Open |
Open |
Open |
Open |
|
2.1v |
Closed |
Open |
Open |
Open |
|
2.2v |
Open |
Closed |
Open |
Open |
|
2.3v |
Closed |
Closed |
Open |
Open |
|
2.4v |
Open |
Open |
Closed |
Open |
|
2.5v |
Closed |
Open |
Closed |
Open |
|
2.6v |
Open |
Closed |
Closed |
Open |
|
2.7v |
Closed |
Closed |
Closed |
Open |
|
2.8v |
Open |
Open |
Open |
Closed |
|
2.9v |
Closed |
Open |
Open |
Closed |
|
3.0v |
Closed |
Open |
Closed |
Open |
|
3.1v |
Closed |
Closed |
Open |
Closed |
|
3.2v |
Open |
Open |
Closed |
Closed |
|
3.3v |
Closed |
Open |
Closed |
Closed |
|
3.4v |
Open |
Closed |
Closed |
Closed |
|
3.5v |
Closed |
Closed |
Closed |
Closed |
|
ONBOARD SOUND SELECTION |
|||
|
Setting |
JP2 |
JP3 |
|
|
» |
Enabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
