Device Type

Mainboard

Processor

Pentium II

Processor Speed

233/266/300/333/350/400/450/500MHz

Chip Set

Unidentified

Maximum Onboard Memory

1GB (SDRAM supported)

Cache

512KB (located on Pentium II CPU)

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, IDE interface, SCSI interface, VRM connectors (2), ATX power connector, AGP slot, microphone in, audio in - CD-ROM, RAID slot, wake on LAN connector

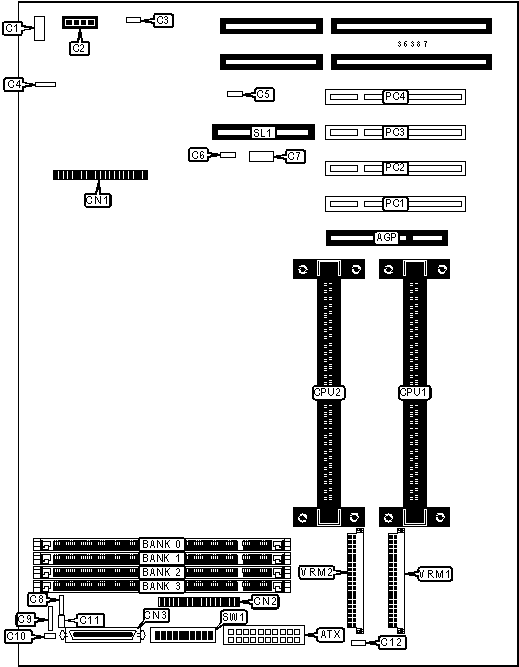

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Disk drive fan

C10

AGP slot

AGP

External battery

C11

Auxiliary in

C1

CPU fan power

C12

Audio in - CD-ROM

C2

IDE interface

CN1

Microphone in

C3

Floppy drive interface

CN2

Speaker

C4

SCSI interface

CN3

I/O card fan power

C5

32-bit PCI slots

PC1 - PC4

Wake on LAN connector

C6

RAID slot

SL1

HP external start connector

C7

VRM connector

VRM1

LCD panel connector

C8

VRM connector

VRM2

Status panel connector

C9

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

SW1/6

Off

CMOS memory clear

SW1/6

On

»

Password normal operation

SW1/7

Off

Password clear

SW1/7

On

»

Keyboard power on disabled

SW1/8

On

Keyboard power on enabled

SW1/8

Off

»

System select minitower

SW1/9

Off

System select desktop

SW1/9

On

»

Flash BIOS normal operation

SW1/10

Off

Flash BIOS recovery mode

SW1/10

On

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

64MB

(1) 8M x 64

None

None

None

128MB

(1) 16M x 64

None

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

None

192MB

(1) 16M x 64

(1) 8M x 64

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

256MB

(1) 32M x 64

None

None

None

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

448MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

640MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

None

1024MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

233MHz

66MHz

3.5x

Off

Off

Off

On

On

266MHz

66MHz

4x

Off

Off

On

Off

Off

300MHz

66MHz

4.5x

Off

Off

On

Off

On

333MHz

66MHz

5x

Off

Off

On

On

Off

350MHz

100MHz

3.5x

Off

Off

Off

On

On

400MHz

100MHz

4x

Off

Off

On

Off

Off

450MHz

100MHz

4.5x

Off

Off

On

Off

On

500MHz

100MHz

5x

Off

Off

On

On

Off
