SOLTEK COMPUTER, INC.
SL-56D1, SL-56D5
|
Device Type |
Mainboard |
|
Processor |
CX MII/AM K5/AM K6/AM K6-2/IDT C6/Pentium/Pentium MMX |
|
Processor Speed |
133/166/200/225/233/250/266/300/333/350MHz |
|
Chip Set |
VIA MVP3 |
|
Maximum Onboard Memory |
768MB (SDRAM & PC100 supported) |
|
Cache |
512/1024KB |
|
BIOS |
Award |
|
Dimensions |
305mm x 180mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, wake on LAN connector |
|

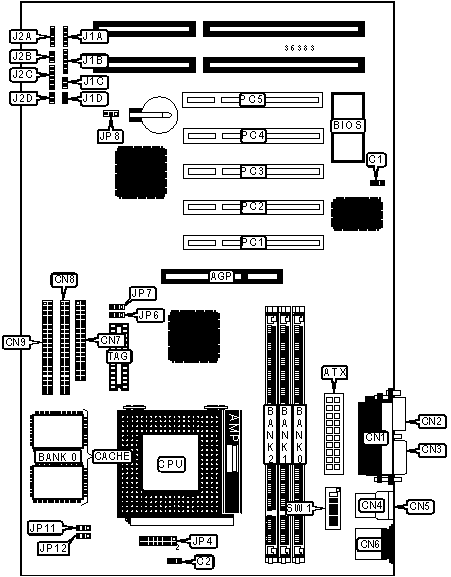

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
IDE interface 2 |
CN8 |
|
ATX power connector |
ATX |
IDE interface 1 |
CN9 |
|
Chassis fan power |
C1 |
IDE interface LED |
J1A |
|
Wake on LAN connector |
C2 |
IR connector |
J1B |
|
Parallel port |
CN1 |
Soft off power supply |
J1C |
|
Serial port 2 |
CN2 |
Green PC connector |
J1D |
|
Serial port 1 |
CN3 |
Speaker |
J2A |
|
USB connector 1 |
CN4 |
Reset switch |
J2B |
|
USB connector 2 |
CN5 |
Power LED & keylock |
J2C |
|
PS/2 mouse port |
CN6 |
Green PC LED |
J2D |
|
Floppy drive interface |
CN7 |
32-bit PCI slots |
PC1 - PC5 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
JP8 |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JP8 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
DIMM CONFIGURATION (CON'T) |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 32M x 64 |
None |
None |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
None |
|
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
|
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
|
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
|
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: Board accepts SDRAM & PC100 memory. |
|||
|
CACHE CONFIGURATION |
||
|
Size |
Bank 0 |
TAG |
|
512KB |
(2) 64K x 32 |
Unidentified |
|
1MB |
(2) 128K x 32 |
Unidentified |
|
CPU SPEED SELECTION (CX MII) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
300MHz |
66MHz |
3.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
300MHz |
75MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
333MHz |
100MHz |
2.5x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
333MHz |
66MHz |
4x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
333MHz |
75MHz |
3.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
350MHz |
83MHz |
3.5x |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
350MHz |
100MHz |
3x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (CX MII, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
300MHz |
75MHz |
3x |
Off |
Off |
On |
Off |
On |
Off |
|
333MHz |
100MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
333MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
333MHz |
75MHz |
3.5x |
Off |
Off |
On |
Off |
Off |
Off |
|
350MHz |
83MHz |
3.5x |
Off |
On |
Off |
Off |
Off |
Off |
|
350MHz |
100MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (IDT C6) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
200MHz |
66MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
225MHz |
75MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (IDT C6, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
3x |
On |
On |
Off |
On |
Off |
On |
|
225MHz |
75MHz |
3x |
On |
On |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K5) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
133MHz |
66MHz |
2x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
166MHz |
66MHz |
2.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
200MHz |
66MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (AM K5, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
133MHz |
66MHz |
2x |
Off |
On |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K6) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
200MHz |
66MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
233MHz |
66MHz |
3.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
266MHz |
66MHz |
4x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
300MHz |
66MHz |
4.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (AM K6, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
300MHz |
66MHz |
4.5x |
Off |
On |
On |
On |
On |
On |
|
CPU SPEED SELECTION (AM K6-2) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
250MHz |
100MHz |
2.5x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
266MHz |
66MHz |
4x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
300MHz |
100MHz |
3x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
333MHz |
95MHz |
3.5x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
350MHz |
100MHz |
3.5x |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (AM K6-2, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
250MHz |
100MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
300MHz |
100MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
333MHz |
95MHz |
3.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
350MHz |
100MHz |
3.5x |
On |
On |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (PENTIUM) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
133MHz |
66MHz |
2x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
166MHz |
66MHz |
2.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
200MHz |
66MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (PENTIUM, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
133MHz |
66MHz |
2x |
Off |
On |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (PENTIUM MMX) |
||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
|
166MHz |
66MHz |
2.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
200MHz |
66MHz |
3x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
233MHz |
66MHz |
3.5x |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note: Pins designated should be in the closed position. |
||||
|
CPU SPEED SELECTION (PENTIUM MMX, CON'T) |
||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION |
|||
|
Voltage |
JP4 |
JP11 |
JP12 |
|
2.2v |
Pins 11 & 12 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
2.8v |
Pins 9 & 10 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
2.9v |
Pins 7 & 8 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
3.2v |
Pins 5 & 6 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
3.3v |
Pins 3 & 4 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
3.5v |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
