Device Type

Mainboard

Processor

Celeron

Processor Speed

300/333/366/400MHz

Chip Set

Intel 440ZX

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Cache

128KB (located on Celeron CPU)

BIOS

Award

Dimensions

305mm x 170mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, wake on LAN connector

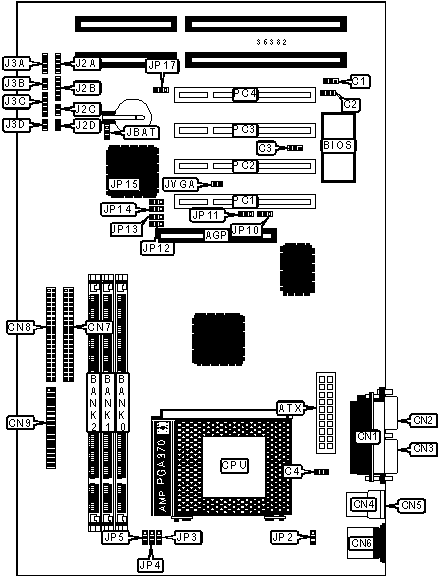

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

IDE interface 2

CN7

ATX power connector

ATX

IDE interface 1

CN8

Wake on LAN connector

C1

Floppy drive interface

CN9

Power fan power

C2

IDE interface LED

J2A

Chassis fan power

C3

IR connector

J2B

CPU fan power

C4

Soft off power supply

J2C

Serial port 2

CN1

Green PC connector

J2D

Serial port 1

CN2

Speaker

J3A

Parallel port

CN3

Reset switch

J3B

USB connector 1

CN4

Power LED & keylock

J3C

USB connector 2

CN5

Green PC LED

J3D

PS/2 mouse port

CN6

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JBAT

Pins 1 & 2 closed

CMOS memory clear

JBAT

Pins 2 & 3 closed

»

Keyboard power on disabled

JP2

Pins 1 & 2 closed

Keyboard power on enabled

JP2

Pins 2 & 3 closed

»

Power lost normal operation

JP17

Pins 1 & 2 closed

Power lost enabled

JP17

Pins 2 & 3 closed

»

Normal VGA card installed

JVGA

Closed

Special VGA card installed

JVGA

Open

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

None

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

56MB

(1) 4M x 64

(1) 2M x 64

(1) 1M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

None

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

None

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

88MB

(1) 8M x 64

(1) 2M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

104MB

(1) 8M x 64

(1) 4M x 64

(1) 1M x 64

112MB

(1) 8M x 64

(1) 4M x 64

(1) 2M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

None

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

152MB

(1) 16M x 64

(1) 2M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

168MB

(1) 16M x 64

(1) 4M x 64

(1) 1M x 64

176MB

(1) 16M x 64

(1) 4M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

200MB

(1) 16M x 64

(1) 8M x 64

(1) 1M x 64

208MB

(1) 16M x 64

(1) 8M x 64

(1) 2M x 64

224MB

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP3

JP4

JP5

300MHz

66MHz

4.5x

2 & 3

1 & 2

1 & 2

333MHz

66MHz

5x

2 & 3

1 & 2

1 & 2

366MHz

66MHz

5.5x

2 & 3

1 & 2

1 & 2

400MHz

66MHz

6x

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CON'T)

CPU speed

Clock speed

Multiplier

JP12

JP13

JP14

JP15

300MHz

66MHz

4.5x

Open

2 & 3

Open

2 & 3

333MHz

66MHz

5x

Open

Open

2 & 3

2 & 3

366MHz

66MHz

5.5x

Open

Open

Open

2 & 3

400MHz

66MHz

6x

2 & 3

2 & 3

2 & 3

Open

Note: Pins designated should be in the closed position.

USB SELECTION

Setting

JP10

JP1

»

Redirect all USB ports to USB connector

Pins 2 & 3 closed

Pins 2 & 3 closed

Redirect USB1 to AGP port

Pins 1 & 2 closed

Pins 1 & 2 closed
