SOLTEK COMPUTER, INC.
SL-67FV
| Device Type | Mainboard |
| Processor | Pentium II/Celeron/Pentium III |
| Processor Speed | 300/333/350/366/400/450/500/550/600MHz |
| Chip Set | VIA Apollo |
| Maximum Onboard Memory | 768MB (SDRAM & PC100 supported) |
| Audio Chip Set | Unidentified |
| Cache | 0/128/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 170m |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (3), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (2), AMR slot, wake on LAN connector |

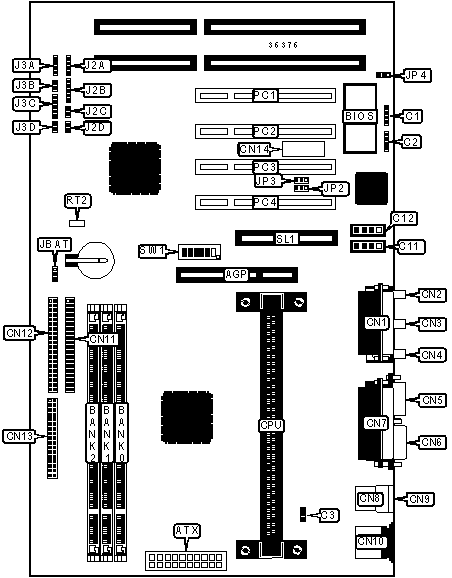

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
PS/2 mouse port | CN10 |
| ATX power connector | ATX |
IDE interface 2 | CN11 |
| Wake on LAN connector | C1 |
IDE interface 1 | CN12 |
| CPU fan power | C2 |
Floppy drive interface | CN13 |
| Chassis fan power | C3 |
USB connector 3 | CN14 |
| Audio in - CD-ROM | C11 |
IDE interface LED | J2A |
| Audio in - CD-ROM | C12 |
IR connector | J2B |
| Game/MIDI port | CN1 |
Soft off power supply | J2C |
| Microphone in | CN2 |
Green PC connector | J2D |
| Line in | CN3 |
Speaker | J3A |
| Line out | CN4 |
Reset switch | J3B |
| Serial port 1 | CN5 |
Power LED & keylock | J3C |
| Serial port 2 | CN6 |
Green PC LED | J3D |
| Parallel port | CN7 |
32-bit PCI slots | PC1 - PC4 |
| USB connector 1 | CN8 |
Thermal sensor connector | RT2 |
| USB connector 2 | CN9 |
AMR slot | SL1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBAT |
Pins 1 & 2 closed |
| CMOS memory clear | JBAT |
Pins 2 & 3 closed |
|
» |
Power lost normal operation | JP4 |
Pins 1 & 2 closed |
| Power lost enabled | JP4 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
DIMM CONFIGURATION (CON'T) |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
None |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board accepts SDRAM & PC100 memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. The size of the Pentium III cache is unidentified. |
CPU SPEED SELECTION (CELERON) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
300MHz |
66MHz |
4.5x |
On |
Off |
On |
Off |
Off |
On |
333MHz |
66MHz |
5x |
Off |
Off |
On |
On |
Off |
On |
366MHz |
66MHz |
5.5x |
Off |
Off |
Off |
On |
Off |
On |
400MHz |
66MHz |
6x |
On |
On |
On |
Off |
Off |
On |
CPU SPEED SELECTION (PENTIUM II) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
500MHz |
100MHz |
5x |
Off |
Off |
On |
On |
Off |
On |
550MHz |
100MHz |
5.5x |
Off |
Off |
Off |
On |
Off |
On |
600MHz |
100MHz |
6x |
On |
On |
On |
Off |
Off |
On |
CPU SPEED SELECTION (PENTIUM III) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
500MHz |
100MHz |
5x |
Off |
Off |
On |
On |
Off |
On |
550MHz |
100MHz |
5.5x |
Off |
Off |
Off |
On |
Off |
On |
600MHz |
100MHz |
6x |
On |
On |
On |
Off |
Off |
On |
ONBOARD SOUND SELECTION |
|||
Setting |
JP2 |
JP3 |
|
| » | Enabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Disabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
