Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

200MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

4GB

Maximum Video Memory

2MB

Cache

512KB

BIOS

Unidentified

Dimensions

355mm x 304mm

I/O Options

32-bit PCI slots (6), floppy drive interface, SCSI interfaces (3)

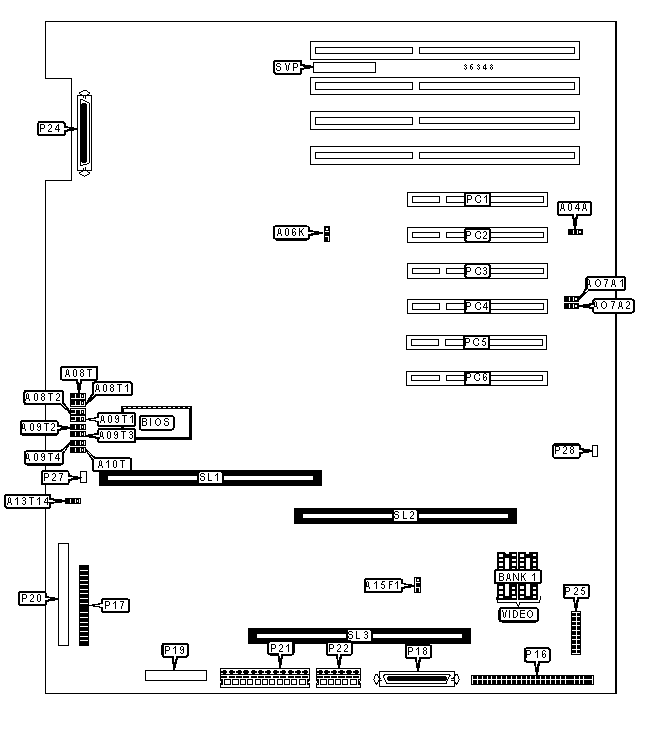

CONNECTIONS

Purpose

Location

Purpose

Location

SCSI-2 interface

P16

Chassis fan power

P27

Floppy drive interface

P17

Chassis fan power

P28

SCSI interface

P18

32-bit PCI slots

PC1 - PC6

Power alarm connector

P19

Riser slot

SL1

System status LED

P20

Riser slot

SL2

5v power

P21

Riser slot

SL3

3.3v power

P22

SVP interface

SVP

Ultra Wide SCSI-3 interface

P24

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Flash BIOS write protect disabled

A04A

Pins 1 & 2 closed

Flash BIOS write protect enabled

A04A

Pins 2 & 3 closed

»

Factory configured - do not alter

A06K

Pins 1 & 2 closed

»

Factory configured - do not alter

A07A1

Pins 1 & 2 closed

»

Factory configured - do not alter

A07A2

Pins 1 & 2 closed

»

Factory configured - do not alter

A08T

Pins 1 & 2 closed

»

Factory configured - do not alter

A08T1

Pins 1 & 2 closed

»

Password enabled

A08T2

Pins 1 & 2 closed

Password disabled

A08T2

Pins 2 & 3 closed

»

CMOS memory normal operation

A09T1

Pins 1 & 2 closed

CMOS memory clear

A09T1

Pins 2 & 3 closed

»

Factory configured - do not alter

A13T14

Pins 1 & 2 closed

»

Factory configured - do not alter

A15F1

Pins 1 & 2 closed

»

Factory configured - do not alter

P25

All jumpers closed

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K x 16

None

2MB

(2) 256K x 16

(2) 256K x 16

Note: The location of bank 0 is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

A10T

A09T2

A09T3

A09T4

200MHz

66MHz

3x

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

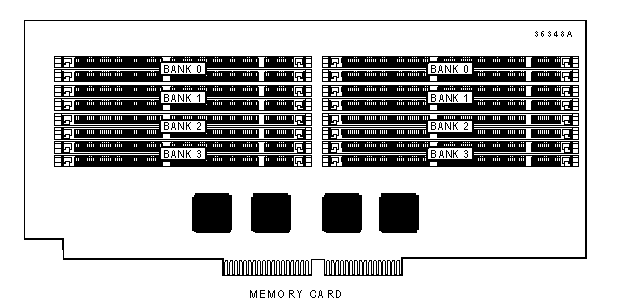

DIMM CONFIGURATION

Size

Interleave configuration

Bank 0

Bank 1

Bank 2

Bank 3

64MB

Two-way

(2) 4M x 64

None

None

None

128MB

Four-way

(4) 4M x 64

None

None

None

256MB

Four-way

(4) 8M x 64

None

None

None

256MB

Four-way

(4) 4M x 64

(4) 4M x 64

None

None

384MB

Four-way

(4) 8M x 64

(4) 4M x 64

None

None

512MB

Four-way

(4) 16M x 64

None

None

None

512MB

Four-way

(4) 8M x 64

(4) 8M x 64

None

None

640MB

Four-way

(4) 16M x 64

(4) 4M x 64

None

None

768MB

Four-way

(4) 16M x 64

(4) 8M x 64

None

None

1024MB

Four-way

(4) 32M x 64

None

None

None

1024MB

Four-way

(4) 16M x 64

(4) 16M x 64

None

None

1152MB

Four-way

(4) 32M x 64

(4) 4M x 64

None

None

1280MB

Four-way

(4) 32M x 64

(4) 8M x 64

None

None

1536MB

Four-way

(4) 32M x 64

(4) 16M x 64

None

None

2084MB

Four-way

(4) 32M x 64

(4) 32M x 64

None

None

2176MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 4M x 64

None

2304MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 8M x 64

None

2560MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 16M x 64

None

3072MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

None

3200MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

(4) 4M x 64

3328MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

(4) 8M x 64

3584MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

(4) 16M x 64

4096MB

Four-way

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

(4) 32M x 64

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium Pro CPU.

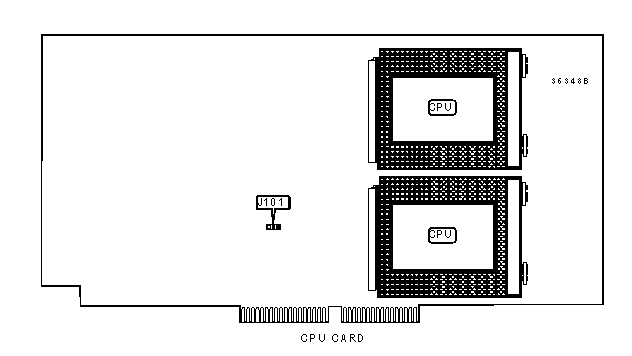

CPU SELECTION

Type

J101

1 CPU installed

Pins 1 & 2 closed

2 CPUs installed

Pins 2 & 3 closed
