PROCOMP INFORMATICS, LTD.
B783
|
Device Type |
Mainboard |
|
Processor |
Pentium II |
|
Processor Speed |
233/266/300/333/350/366/400/450/500/550MHz |
|
Chip Set |
VIA VT |
|
Maximum Onboard Memory |
384MB (SDRAM supported) |
|
Cache |
256/512KB (located on Pentium II CPU) |
|
BIOS |
Award |
|
Dimensions |
305mm x 185mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, SB-link connector, wake on LAN connector |
|

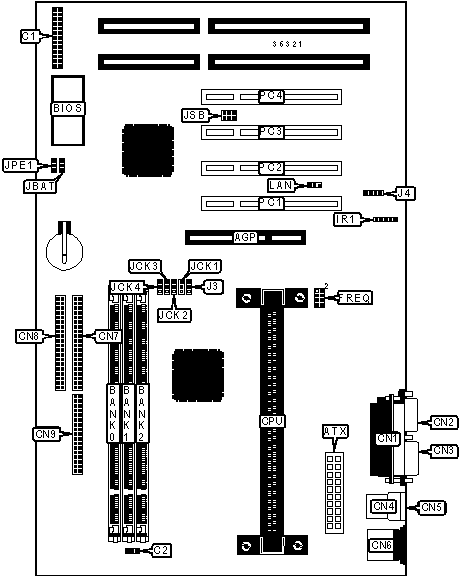

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Serial port 1 |
CN3 |
|
ATX power connector |
ATX |
USB connector 1 |
CN4 |
|
Green PC connector |
C1/pins 1 & 2 |
USB connector 2 |
CN5 |
|
Green PC LED |
C1/pins 4 & 5 |
PS/2 mouse port |
CN6 |
|
Soft off power supply |
C1/pins 7 & 8 |
IDE interface 1 |
CN7 |
|
IDE interface LED |
C1/pins 12 & 13 |
IDE interface 2 |
CN8 |
|
Speaker |
C1/pins 14 - 17 |
Floppy drive interface |
CN9 |
|
Reset switch |
C1/pins 19 & 20 |
IR connector |
IR1 |
|
Power LED & keylock |
C1/pins 21- -26 |
SB-link connector |
JSB |
|
Chassis fan power |
C2 |
Wake on LAN connector |
LAN |
|
Parallel port |
CN1 |
32-bit PCI slots |
PC1 - PC4 |
|
Serial port 2 |
CN2 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
IOQ depth select 4 |
J3 |
Pins 1 & 2 closed |
|
|
IOQ depth select 1 |
J3 |
Pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
J4 |
Unidentified |
|
» |
CMOS memory normal operation |
JBAT |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JBAT |
Pins 2 & 3 closed |
|
|
Flash BIOS select 2MB |
JPE1 |
Pins 1 & 2 closed |
|
|
Flash BIOS select 1MB |
JPE1 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
DIMM CONFIGURATION (CON'T) |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. |
|
CPU SPEED SELECTION (66MHZ SDRAM FREQUENCY) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FREQ/pins 1 & 2 |
FREQ/pins 3 & 4 |
FREQ/pins 5 & 6 |
FREQ/pins 7 & 8 |
|
233MHz |
66MHz |
3.5x |
Closed |
Open |
Open |
Closed |
|
266MHz |
66MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
300MHz |
66MHz |
4.5x |
Open |
Closed |
Open |
Closed |
|
333MHz |
66MHz |
5x |
Open |
Open |
Closed |
Closed |
|
366MHz |
66MHz |
5.5x |
Closed |
Open |
Open |
Open |
|
350MHz |
100MHz |
3.5x |
Closed |
Open |
Open |
Closed |
|
400MHz |
100MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
450MHz |
100MHz |
4.5x |
Open |
Closed |
Open |
Closed |
|
500MHz |
100MHz |
5x |
Open |
Open |
Closed |
Closed |
|
550MHz |
100MHz |
5.5x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (66MHZ SDRAM FREQUENCY, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JCK1 |
JCK2 |
JCK3 |
JCK4 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
266MHz |
66MHz |
4x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
300MHz |
66MHz |
4.5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
333MHz |
66MHz |
5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
366MHz |
66MHz |
5.5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
350MHz |
100MHz |
3.5x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
400MHz |
100MHz |
4x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
450MHz |
100MHz |
4.5x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
500MHz |
100MHz |
5x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
550MHz |
100MHz |
5.5x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (100MHZ SDRAM FREQUENCY) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FREQ/pins 1 & 2 |
FREQ/pins 3 & 4 |
FREQ/pins 5 & 6 |
FREQ/pins 7 & 8 |
|
350MHz |
100MHz |
3.5x |
Closed |
Open |
Open |
Closed |
|
400MHz |
100MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
450MHz |
100MHz |
4.5x |
Open |
Closed |
Open |
Closed |
|
500MHz |
100MHz |
5x |
Open |
Open |
Closed |
Closed |
|
550MHz |
100MHz |
5.5x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (100MHZ SDRAM FREQUENCY, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JCK1 |
JCK2 |
JCK3 |
JCK4 |
|
350MHz |
100MHz |
3.5x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
400MHz |
100MHz |
4x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
450MHz |
100MHz |
4.5x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
500MHz |
100MHz |
5x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
550MHz |
100MHz |
5.5x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
||||||
