BCM ADVANCED RESEARCH, INC.
GT440ZX
|
Device Type |
Mainboard |
|
Processor |
Pentium II/Celeron |
|
Processor Speed |
233/266/300/333/350/366/400/433/450/466/500MHz |
|
Chip Set |
Intel 440ZX |
|
Maximum Onboard Memory |
256MB (SDRAM supported) |
|
Audio Chip Set |
Creative |
|
Cache |
0/128/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM, wake on LAN connector |
|

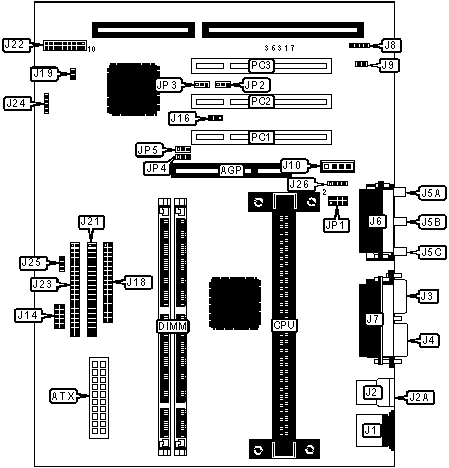

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Wake on LAN connector |
J16 |
|
ATX power connector |
ATX |
CPU fan power |
J17 |
|
PS/2 mouse port |
J1 |
IDE interface 2 |
J18 |
|
USB connector 1 |
J2 |
IDE interface 1 |
J21 |
|
USB connector 2 |
J2A |
IDE interface LED |
J22/pins 1 & 2 |
|
Serial port 2 |
J3 |
Reset switch |
J22/pins 3 & 4 |
|
Serial port 1 |
J4 |
IR connector |
J22/pins 5 - 8 |
|
Microphone in |
J5A |
Power LED |
J22/pins 10 & 11 |
|
Line in |
J5B |
Soft off power supply |
J22/pins 12 & 13 |
|
Line out |
J5C |
Green PC connector |
J22/pins 14 & 15 |
|
Game/MIDI port |
J6 |
Floppy drive interface |
J23 |
|
Parallel port |
J7 |
Speaker |
J24 |
|
Modem connector |
J8 |
Chassis fan power |
J25 |
|
S/PDIF connector |
J9 |
Auxiliary in |
J26 |
|
Audio in - CD-ROM |
J10 |
32-bit PCI slots |
PC1 - PC3 |
|
Front USB connector |
J14 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
JP2 |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JP2 |
Pins 2 & 3 closed |
|
» |
Password normal operation |
JP3 |
Pins 1 & 2 closed |
|
|
Password clear |
JP3 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
DIMM CONFIGURATION (CON'T) |
||
|
Size |
Bank 0 |
Bank 1 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
Note: Board accepts SDRAM memory. The location of the banks are unidentified. |
||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300 & 333A CPU. |
|
CPU SPEED SELECTION |
||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1/ pins 1 & 2 |
JP1/ pins 3 & 4 |
JP1/ pins 5 & 6 |
JP1/ pins 7 & 8 |
|
233MHz |
66MHz |
3.5x |
Open |
Closed |
Open |
Closed |
|
266MHz |
66MHz |
4x |
Closed |
Open |
Closed |
Closed |
|
300MHz |
66MHz |
4.5x |
Closed |
Open |
Open |
Closed |
|
333MHz |
66MHz |
5x |
Open |
Open |
Closed |
Closed |
|
366MHz |
66MHz |
5.5x |
Open |
Open |
Open |
Closed |
|
400MHz |
66MHz |
6x |
Closed |
Closed |
Closed |
Open |
|
433MHz |
66MHz |
6.5x |
Closed |
Closed |
Open |
Open |
|
466MHz |
66MHz |
7x |
Open |
Closed |
Closed |
Open |
|
300MHz |
100MHz |
3x |
Open |
Closed |
Closed |
Closed |
|
350MHz |
100MHz |
3.5x |
Open |
Closed |
Open |
Closed |
|
400MHz |
100MHz |
4x |
Closed |
Open |
Closed |
Closed |
|
450MHz |
100MHz |
4.5x |
Closed |
Open |
Open |
Closed |
|
500MHz |
100MHz |
5x |
Open |
Open |
Closed |
Closed |
|
USB SELECTION |
||
|
Setting |
JP4 |
JP5 |
|
Front USB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Back USB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
