ASUS COMPUTER INTERNATIONAL
P5S-VM (REV. 1.02)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ CX MII/IBM MII/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX |
|
Processor Speed |
100/133/166/200/233/266/300/333/350/366/380/400/450MHz |
|
Chip Set |
SIS 530 |
|
Video Chip Set |
SIS |
|
Maximum Onboard Memory |
768MB (SDRAM & PC100 supported) |
|
Maximum Video Memory |
8MB |
|
Cache |
512/1024KB |
|
BIOS |
Unidentified |
|
Dimensions |
305mm x 244mm |
|
I/O Options |

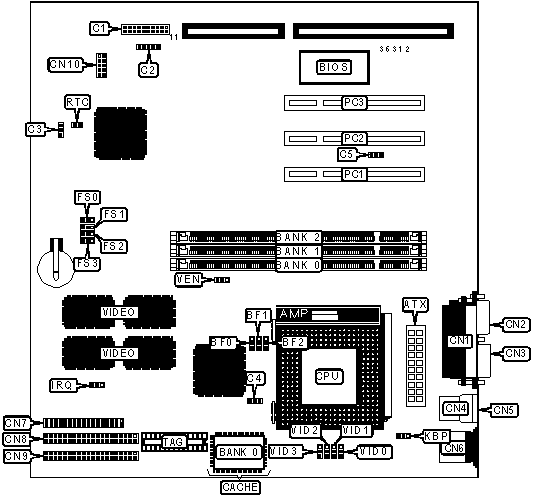

32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), ATX power connector, wake on LAN connector |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Parallel port |
CN1 |
|
Turbo LED |
C1/pins 2 & 3 |
VGA port |
CN2 |
|
Green PC connector |
C1/pins 4 & 5 |
Serial port 1 |
CN3 |
|
Soft off power supply |
C1/pins 6 & 7 |
USB connector 1 |
CN4 |
|
Reset switch |
C1/pins 9 & 10 |
USB connector 2 |
CN5 |
|
Power LED & keylock |
C1/pins 11 - 15 |
PS/2 mouse port |
CN6 |
|
Speaker |
C1/pins 17 - 20 |
Floppy drive interface |
CN7 |
|
IR connector |
C2 |
IDE interface 2 |
CN8 |
|
Chassis fan power |
C3 |
IDE interface 1 |
CN9 |
|
CPU fan power |
C4 |
Serial port 2 |
CN10 |
|
Wake on LAN connector |
C5 |
32-bit PCI slots |
PC1 - PC3 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
On board audio enabled |
AUD |
Pins 2 & 3 closed |
|
|
On board audio disabled |
AUD |
Pins 1 & 2 closed |
|
» |
VGA IRQ enabled |
IRQ |
Pins 2 & 3 closed |
|
|
VGA IRQ disabled |
IRQ |
Pins 1 & 2 closed |
|
» |
Line out select with amplifier |
LINE |
Pins 3 & 5, 4 & 6 closed |
|
|
Line out select without amplifier |
LINE |
Pins 1 & 3, 2 & 4 closed |
|
» |
Keyboard power on disabled |
KBP |
Pins 1 & 2 closed |
|
|
Keyboard power on enabled |
KBP |
Pins 2 & 3 closed |
|
» |
CMOS memory normal operation |
RTC |
Open |
|
|
CMOS memory clear |
RTC |
Closed |
|
» |
On board video enabled |
VEN |
Pins 2 & 3 closed |
|
|
On board video disabled |
VEN |
Pins 1 & 2 closed |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 32M x 64 |
None |
None |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
None |
|
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
|
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
|
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
|
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: Board accepts SDRAM & PC100 memory. |
|||
|
CACHE CONFIGURATION |
||
|
Size |
Bank 0 |
TAG |
|
512KB |
(1) 64K x 64 |
Unidentified |
|
1MB |
(1) 128K x 64 |
Unidentified |
|
VIDEO MEMORY CONFIGURATION |
|
Note: Video memory is factory installed and is not configurable. |
|
CPU SPEED SELECTION (CX 6X86) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (CX 6X86, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (IBM 6X86) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (IBM 6X86, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (CX 6X86L) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (CX 6X86L, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (IBM 6X86L) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (IBM 6X86L, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (CX 6X86MX) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
200MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
|
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (CX 6X86MX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
200MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (IBM 6X86MX) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
200MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
|
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (IBM 6X86MX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
200MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (CX MII) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
300MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
300MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (CX MII, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
300MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
300MHz |
75MHz |
3x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (IBM MII) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
300MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
300MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (IBM MII, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
300MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
300MHz |
75MHz |
3x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (AM K5) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
|
133MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (AM K5, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
133MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (AM K6) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
266MHz |
66MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
|
300MHz |
66MHz |
4.5x |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (AM K6, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
266MHz |
66MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
300MHz |
66MHz |
4.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (AM K6-2) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
266MHz |
66MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
|
300MHz |
100MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
333MHz |
95MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
350MHz |
100MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
366MHz |
66MHz |
5.5x |
1 & 2 |
1 & 2 |
2 & 3 |
|
380MHz |
100MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
|
400MHz |
100MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
|
450MHz |
100MHz |
4.5x |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (AM K6-2, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
266MHz |
66MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
300MHz |
100MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
333MHz |
95MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
350MHz |
100MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
366MHz |
66MHz |
5.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
380MHz |
95MHz |
4x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
400MHz |
100MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
450MHz |
100MHz |
4.5x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (INTEL) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
|
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (INTEL, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU SPEED SELECTION (INTEL MMX) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU SPEED SELECTION (INTEL MMX, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
|
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
||||||
|
CPU VOLTAGE SELECTION (SINGLE) |
||||
|
Voltage |
VID0 |
VID1 |
VID2 |
VID3 |
|
3.4v |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
3.5v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CPU VOLTAGE SELECTION (DUAL) |
||||
|
Voltage |
VID0 |
VID1 |
VID2 |
VID3 |
|
2.2v |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
2.3v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
2.8v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
2.9v |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
3.2v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
