ASUS COMPUTER INTERNATIONAL
P5S-VM (REV. 1.02) (SOUND)
| Device Type | Mainboard |
| Processor | CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ CX MII/IBM MII/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX |
| Processor Speed | 100/133/166/200/233/266/300/333/350/366/380/400/450MHz |
| Chip Set | SIS 530 |
| Video Chip Set | SIS |
| Maximum Onboard Memory | 768MB (SDRAM & PC100 supported) |
| Maximum Video Memory | 8MB |
| Audio Chip Set | Creative |
| Cache | 512/1024KB |
| BIOS | Unidentified |
| Dimensions | 305mm x 244mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, wake on LAN connector |

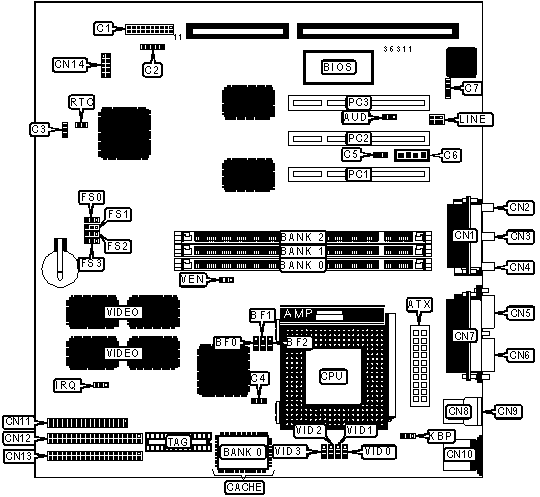

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Microphone in | CN2 |
| Turbo LED | C1/pins 2 & 3 |
Line in | CN3 |
| Green PC connector | C1/pins 4 & 5 |
Line out | CN4 |
| Soft off power supply | C1/pins 6 & 7 |
VGA port | CN5 |
| Reset switch | C1/pins 9 & 10 |
Serial port 1 | CN6 |
| Power LED & keylock | C1/pins 11 - 15 |
Parallel port | CN7 |
| Speaker | C1/pins 17 - 20 |
USB connector 1 | CN8 |
| IR connector | C2 |
USB connector 2 | CN9 |
| Chassis fan power | C3 |
PS/2 mouse port | CN10 |
| CPU fan power | C4 |
Floppy drive interface | CN11 |
| Wake on LAN connector | C5 |
IDE interface 2 | CN12 |
| Audio in - CD-ROM | C6 |
IDE interface 1 | CN13 |
| Modem connector | C7 |
Serial port 2 | CN14 |
| Game/MIDI port | CN1 |
32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
On board audio enabled | AUD |
Pins 2 & 3 closed |
| On board audio disabled | AUD |
Pins 1 & 2 closed |
|
» |
VGA IRQ enabled | IRQ |
Pins 2 & 3 closed |
| VGA IRQ disabled | IRQ |
Pins 1 & 2 closed |
|
» |
Line out select with amplifier | LINE |
Pins 3 & 5, 4 & 6 closed |
| Line out select without amplifier | LINE |
Pins 1 & 3, 2 & 4 closed |
|
» |
Keyboard power on disabled | KBP |
Pins 1 & 2 closed |
| Keyboard power on enabled | KBP |
Pins 2 & 3 closed |
|
» |
CMOS memory normal operation | RTC |
Open |
| CMOS memory clear | RTC |
Closed |
|
» |
On board video enabled | VEN |
Pins 2 & 3 closed |
| On board video disabled | VEN |
Pins 1 & 2 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
DIMM CONFIGURATION (CON'T) |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
None |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board accepts SDRAM & PC100 memory. | |||
CACHE CONFIGURATION |
||
Size |
Bank 0 |
TAG |
512KB |
(1) 64K x 64 |
Unidentified |
1MB |
(1) 128K x 64 |
Unidentified |
VIDEO MEMORY CONFIGURATION |
| Note: Video memory is factory installed and is not configurable. |
CPU SPEED SELECTION (CX 6X86) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (CX 6X86, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (IBM 6X86) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (IBM 6X86, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (CX 6X86L) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (CX 6X86L, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (IBM 6X86L) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (IBM 6X86L, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (CX 6X86MX) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
200MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (CX 6X86MX, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
200MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (IBM 6X86MX) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
200MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (IBM 6X86MX, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
200MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
233MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (CX MII) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
300MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
300MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
Open |
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (CX MII, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
300MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
300MHz |
75MHz |
3x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
| CPU SPEED SELECTION (IBM MII) | |||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
300MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
300MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
Open |
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (IBM MII, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
300MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
300MHz |
75MHz |
3x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
333MHz |
83MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K5) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
133MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (AM K5, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
133MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K6) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
266MHz |
66MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
300MHz |
66MHz |
4.5x |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (AM K6, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
233MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
266MHz |
66MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
300MHz |
66MHz |
4.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K6-2) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
266MHz |
66MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
300MHz |
100MHz |
3x |
1 & 2 |
2 & 3 |
Open |
333MHz |
95MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
350MHz |
100MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
366MHz |
66MHz |
5.5x |
1 & 2 |
1 & 2 |
2 & 3 |
380MHz |
100MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
400MHz |
100MHz |
4x |
2 & 3 |
1 & 2 |
2 & 3 |
450MHz |
100MHz |
4.5x |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (AM K6-2, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
266MHz |
66MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
300MHz |
100MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
333MHz |
95MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
350MHz |
100MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
366MHz |
66MHz |
5.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
380MHz |
95MHz |
4x |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
400MHz |
100MHz |
4x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
450MHz |
100MHz |
4.5x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (INTEL) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
Open |
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (INTEL, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU SPEED SELECTION (INTEL MMX) |
|||||
CPU speed |
Clock speed |
Multiplier |
BF0 |
BF1 |
BF2 |
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
Open |
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
Open |
| Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (INTEL MMX, CON'T) |
||||||
CPU speed |
Clock speed |
Multiplier |
FS0 |
FS1 |
FS2 |
FS3 |
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
233MHz |
66MHz |
3.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||
CPU VOLTAGE SELECTION (SINGLE) |
||||
Voltage |
VID0 |
VID1 |
VID2 |
VID3 |
3.4v |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
3.5v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
CPU VOLTAGE SELECTION (DUAL) |
||||
Voltage |
VID0 |
VID1 |
VID2 |
VID3 |
2.2v |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
2.3v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
2.8v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
2.9v |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
3.2v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
