Device Type

Mainboard

Processor

Pentium II/Celeron

Processor Speed

233/266/300/333/366MHz

Chip Set

Intel 440LX/EX

Video Chip Set

ATI

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

8MB

Audio Chip Set

ESS

Cache

0/128/256/512KB (located on the CPU)

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options (backplane)

CD-ROM interface, Ethernet 10BaseT connector, game/MIDI port, PS/2 mouse port, parallel port, serial ports (2), VGA port, riser slot

I/O Options (riser card)

32-bit PCI slots (2), USB connectors (2), ATX power connector, microphone in, IR connector, wake on LAN connector

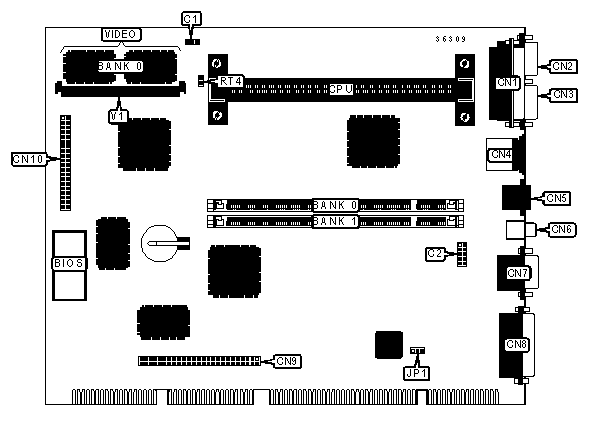

CONNECTIONS

Purpose

Location

Purpose

Location

CPU fan power

C1

RCA jack

CN6

Jack connector

C2

VGA port

CN7

Parallel port

CN1

Game/MIDI port

CN8

Serial port 1

CN2

CD-ROM connector

CN9

Serial port 2

CN3

AMC connector

CN10

PS/2 mouse port

CN4

CPU thermal sensor

RT4

Ethernet 10BaseT connector

CN5

Video upgrade module

V1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

On board audio enabled

JP1

Pins 1 & 2 closed

On board audio disabled

JP1

Pins 2 & 3 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU.

VIDEO MEMORY CONFIGURATION

Note: Board is factory installed with 0/2/4MB of video memory. To increase the memory, install upgrade module at V1.

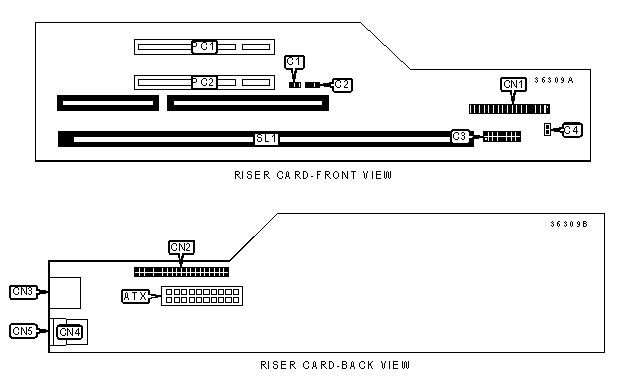

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

IDE interface

CN2

LAN LED

C1

IR connector

CN3

Wake on LAN connector

C2

USB connector 1

CN4

Front panel connector

C3

USB connector 2

CN5

Microphone in

C4

Riser slot

SL1

Floppy drive interface

CN1

32-bit PCI slots

PC1 - PC2
