Device Type

Mainboard

Processor

Celeron

Processor Speed

300/333/366/400/433/466MHz

Chip Set

SIS 620

Video Chip Set

Unidentified

Maximum Onboard Memory

512MB (SDRAM & PC100 supported)

Maximum Video Memory

8MB

Audio Chip Set

Unidentified

Cache

128KB (located on the Celeron CPU)

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), SB-link connector, wake on LAN connector

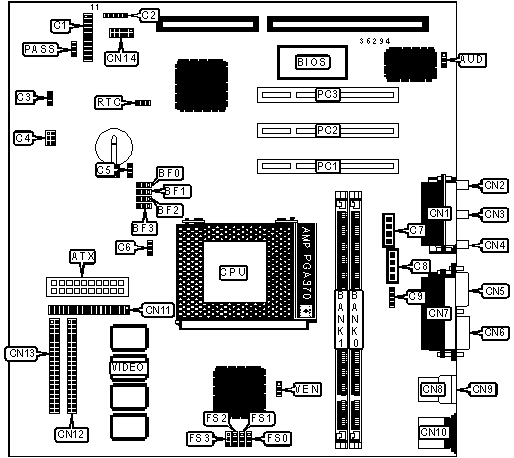

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Game/MIDI port

CN1

Turbo LED

C1/pins 2 & 3

Microphone in

CN2

Green PC connector

C1/pins 4 & 5

Line in

CN3

Soft off power supply

C1/pins 6 & 7

Line out

CN4

Reset switch

C1/pins 9 & 10

VGA port

CN5

Power LED & keylock

C1/pins 11 - 15

Serial port 1

CN6

Speaker

C1/pins 17 - 20

Parallel port

CN7

IR connector

C2

USB connector 1

CN8

Chassis fan power

C3

USB connector 2

CN9

SB-link connector

C4

PS/2 mouse port

CN10

Wake on LAN connector

C5

Floppy drive interface

CN11

CPU fan power

C6

IDE interface 2

CN12

Audio in - CD-ROM

C7

IDE interface 1

CN13

Audio in - CD-ROM

C8

Serial port 2

CN14

Modem connector

C9

32-bit PCI slots

PC1 - PC3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

On board sound enabled

AUD

Pins 1 & 2 closed

On board sound disabled

AUD

Pins 2 & 3 closed

»

Factory configured - do not alter

PASS

Unidentified

»

Factory configured - do not alter

RTC

Unidentified

»

On board video enabled

VEN

Pins 1 & 2 closed

On board video disabled

VEN

Pins 2 & 3 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

Note: Board accepts SDRAM & PC100 memory.

CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron 300A & 333 CPU.

VIDEO MEMORY CONFIGURATION

Note: Video memory is factory installed and is not configurable.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

BF0

BF1

BF2

BF3

300MHz

66MHz

4.5x

1 & 2

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5x

2 & 3

1 & 2

1 & 2

2 & 3

366MHz

66MHz

5.5x

1 & 2

1 & 2

1 & 2

2 & 3

400MHz

66MHz

6x

2 & 3

2 & 3

2 & 3

1 & 2

433MHz

66MHz

6.5x

1 & 2

2 & 3

2 & 3

1 & 2

466MHz

66MHz

7x

1 & 2

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CON'T)

CPU speed

Clock speed

Multiplier

FS0

FS1

FS2

FS3

300MHz

66MHz

4.5x

2 & 3

2 & 3

2 & 3

1 & 2

333MHz

66MHz

5x

2 & 3

2 & 3

2 & 3

1 & 2

366MHz

66MHz

5.5x

2 & 3

2 & 3

2 & 3

1 & 2

400MHz

66MHz

6x

2 & 3

2 & 3

2 & 3

1 & 2

433MHz

66MHz

6.5x

2 & 3

2 & 3

2 & 3

1 & 2

466MHz

66MHz

7x

2 & 3

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.
