MEZ-M (REV. 1.03)

ASUS COMPUTER INTERNATIONAL

MEZ-M (REV. 1.03)

Device Type	Mainboard
Processor	Celeron
Processor Speed	300/333/366/400MHz
Chip Set	Intel 440ZX
Maximum Onboard Memory	256MB (SDRAM & PC100 supported)
Audio Chip Set	ESS
Cache	128KB (located on the Celeron CPU)
BIOS	Unidentified
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (2), SB-link connector, wake on LAN connector, wake on modem connector

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Audio in - CD-ROM	C12
ATX power connector	ATX	Modem connector	C13
SMB connector	C1	Audio in - CD-ROM	C14
Chassis intrusion connector	C2	Auxiliary in	C15
Wake on modem connector	C3	Game/MIDI port	CN1
IDE interface LED	C4	Microphone in	CN2
Turbo LED	C5/pins 2 & 3	Line in	CN3
Green PC connector	C5/pins 4 & 5	Line out	CN4
Soft off power supply	C5/pins 6 & 7	Serial port 2	CN5
Reset switch	C5/pins 9 & 10	Serial port 1	CN6
Power LED & keylock	C5/pins 11 - 15	Parallel port	CN7
Speaker	C5/pins 17 - 20	USB connector 1	CN8
IR connector	C6	USB connector 2	CN9
Chassis fan power	C7	PS/2 mouse port	CN10
Power fan power	C8	Floppy drive interface	CN11
CPU fan power	C9	IDE interface 2	CN12
SB-link connector	C10	IDE interface 1	CN13
Wake on LAN connector	C11	32-bit PCI slots	PC1 - PC3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Keyboard power up disabled	KBP	Pins 1 & 2 closed
	Keyboard power up enabled	KBP	Pins 2 & 3 closed
»	CMOS memory normal operation	RTC	Open
	CMOS memory clear	RTC	Closed
	Voltage select normal	SW1/5	Off
	Voltage select high	SW1/5	On
	On board audio disabled	SW1/6	Off
	On board audio enabled	SW1/6	On

DIMM CONFIGURATION (CON'T)
Size	Bank 0	Bank 1	Bank 2
48MB	(1) 4M x 64	(1) 1M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
56MB	(1) 4M x 64	(1) 2M x 64	(1) 1M x 64
64MB	(1) 8M x 64	None	None
64MB	(1) 4M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None
72MB	(1) 8M x 64	(1) 1M x 64	None
72MB	(1) 4M x 64	(1) 4M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 1M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64	None
80MB	(1) 4M x 64	(1) 4M x 64	(1) 2M x 64
88MB	(1) 8M x 64	(1) 2M x 64	(1) 1M x 64
96MB	(1) 8M x 64	(1) 2M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
104MB	(1) 8M x 64	(1) 4M x 64	(1) 1M x 64
112MB	(1) 8M x 64	(1) 4M x 64	(1) 2M x 64
128MB	(1) 16M x 64	None	None
128MB	(1) 8M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None
136MB	(1) 16M x 64	(1) 1M x 64	None
136MB	(1) 8M x 64	(1) 8M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64	None
144MB	(1) 8M x 64	(1) 8M x 64	(1) 2M x 64
152MB	(1) 16M x 64	(1) 2M x 64	(1) 1M x 64
160MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None
160MB	(1) 8M x 64	(1) 8M x 64	(1) 4M x 64
168MB	(1) 16M x 64	(1) 4M x 64	(1) 1M x 64
176MB	(1) 16M x 64	(1) 4M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
200MB	(1) 16M x 64	(1) 8M x 64	(1) 1M x 64
208MB	(1) 16M x 64	(1) 8M x 64	(1) 2M x 64
224MB	(1) 16M x 64	(1) 8M x 64	(1) 4M x 64
256MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64
Note: Board accepts SDRAM & PC100 memory.

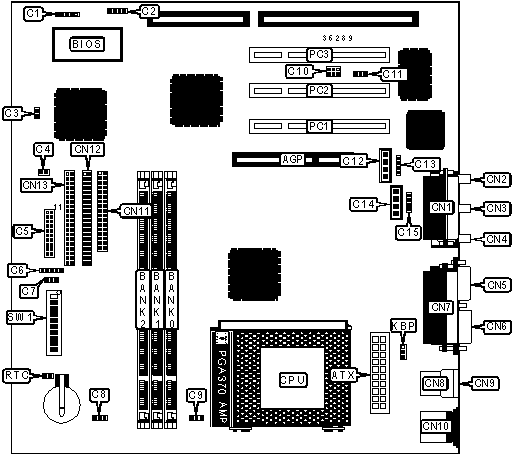

CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron 300A & 333 CPU.
