ZENITH DATA SYSTEMS
Z-STATION GT PENTIUM PRO
|
Device Type |
Mainboard |
|
Processor |
Pentium Pro |
|
Processor Speed |
150/166MHz |
|
Chip Set |
Intel |
|
Maximum Onboard Memory |
128MB |
|
Cache |
256KB (located on Pentium Pro CPU) |
|
BIOS |
AMI |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, ATX power connector |
|

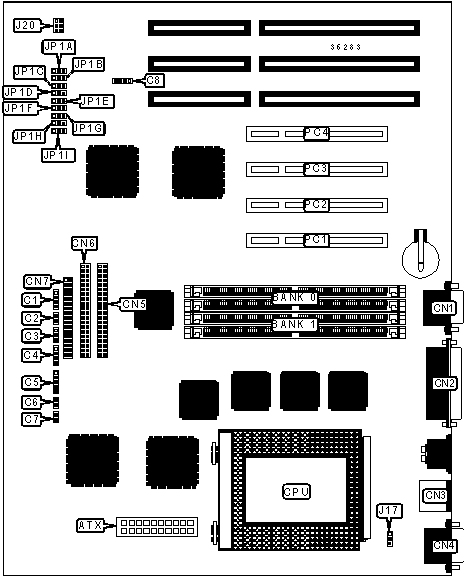

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Parallel port |
CN2 |
|
VGA feature connector |
C1 |
PS/2 mouse port |
CN3 |
|
Speaker |
C2 |
Serial port 1 |
CN4 |
|
Reset switch |
C3 |
IDE interface 2 |
CN5 |
|
Power LED |
C4 |
IDE interface 1 |
CN6 |
|
IDE interface LED |
C5 |
Floppy drive interface |
CN7 |
|
IR connector |
C6 |
CPU fan power |
J17 |
|
Green PC connector |
C7 |
Card slot fan connector |
J20 |
|
Soft off power supply |
C8 |
32-bit PCI slots |
PC1 – PC4 |
|
Serial port 2 |
CN1 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Factory configured - do not alter |
JP1D |
Pins 2 & 3 closed |
|
» |
Password normal operation |
JP1E |
Pins 2 & 3 closed |
|
Password clear |
JP1E |
Pins 1 & 2 closed |
|
|
» |
CMOS memory normal operation |
JP1F |
Pins 2 & 3 closed |
|
CMOS memory clear |
JP1F |
Pins 1 & 2 closed |
|
|
» |
Setup access enabled |
JP1G |
Pins 2 & 3 closed |
|
Setup access disabled |
JP1G |
Pins 1 & 2 closed |
|
|
» |
BIOS normal operation |
JP1H |
Pins 2 & 3 closed |
|
BIOS recovery mode |
JP1H |
Pins 1 & 2 closed |
|
|
» |
Factory configured - do not alter |
JP1I |
Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION |
|
Note: 256KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION |
|||||
|
CPU speed |
Clock speed |
Multiplier |
JP1A |
JP1B |
JP1C |
|
150MHz |
60MHz |
2.5x |
1 & 2 |
1 & 2 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||||
