Device Type

Mainboard

Processor

CX 6X86L/AM K6/Pentium/Pentium MMX

Processor Speed

120/133/150/166/200/233MHz

Chip Set

Intel 430TX

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Cache

512KB

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), Wide SCSI interface, Ultra SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, ATX power connector, RAID slot

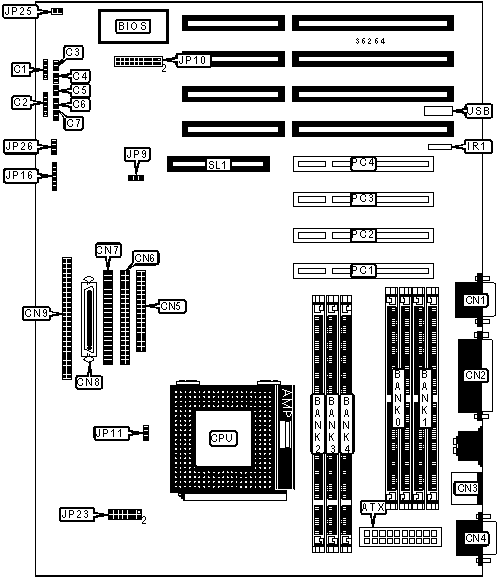

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Serial port 1

CN4

Speaker

C1

Floppy drive interface

CN5

Power LED & keylock

C2

IDE interface 1

CN6

Reset switch

C3

IDE interface 2

CN7

SCSI interface LED

C4

Wide SCSI interface

CN8

IDE interface LED

C5

Ultra SCSI interface

CN9

Green PC connector

C6

IR connector

IR1

LED

C7

Chassis fan power

JP11

Serial port 2

CN1

32-bit PCI slots

PC1 - PC4

Parallel port

CN2

RAID slot

SL1

PS/2 mouse port

CN3

USB connector

USB

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP9

Unidentified

»

Factory configured - do not alter

JP16

Unidentified

»

Factory configured - do not alter

JP25

Unidentified

»

Factory configured - do not alter

JP26

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

Bank 3

Bank 4

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

None

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

56MB

(1) 4M x 64

(1) 2M x 64

(1) 1M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

None

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

88MB

(1) 8M x 64

(1) 2M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

None

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

152MB

(1) 16M x 64

(1) 2M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

168MB

(1) 16M x 64

(1) 4M x 64

(1) 1M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

200MB

(1) 16M x 64

(1) 8M x 64

(1) 1M x 64

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP10

120MHz

60MHz

2x

Pins 1 & 2 closed

133MHz

66MHz

2x

Pins 3 & 4 closed

150MHz

60MHz

2.5x

Pins 5 & 6 closed

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 11 & 12 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP10

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP10

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP10

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU VOLTAGE SELECTION

Voltage

JP23

2.1v

Pins 11 & 12 closed

2.8v

Pins 9 & 10 closed

2.9v

Pins 7 & 8 closed

3.1v

Pins 5 & 6 closed

3.2v

Pins 3 & 4 closed

3.5v

Pins 1 & 2 closed
