Device Type

Mainboard

Processor

CX 6X86L/AM K6/Pentium/Pentium MMX

Processor Speed

166/200/233MHz

Chip Set

ALI Aladdin

Maximum Onboard Memory

512MB

Cache

512KB

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), USB connector

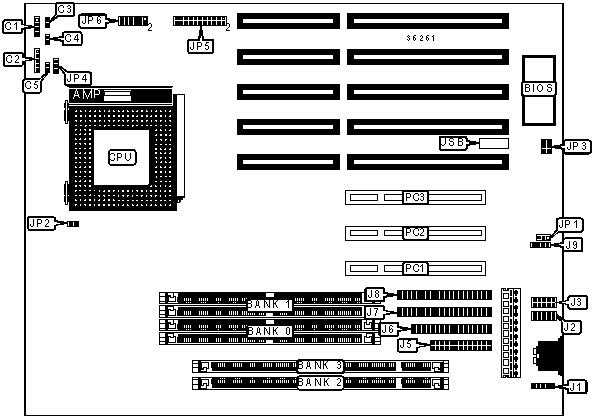

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

C1

Parallel port

J5

Power LED & keylock

C2

Floppy drive interface

J6

Reset switch

C3

IDE interface 1

J7

IDE interface LED

C4

IDE interface 2

J8

Turbo LED

C5

Chassis fan power

JP4

PS/2 mouse interface

J1

32-bit PCI slots

PC1 - PC3

Serial port 2

J2

USB connector

USB

Serial port 1

J3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J9

Unidentified

»

Factory configured - do not alter

JP1

Unidentified

»

Factory configured - do not alter

JP2

Unidentified

»

Factory configured - do not alter

JP3

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

DIMM CONFIGURATION

Size

Bank 2

Bank 3

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP5

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 11 & 12 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP5

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP5

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP5

166MHz

66MHz

2.5x

Pins 7 & 8 closed

200MHz

66MHz

3x

Pins 9 & 10 closed

233MHz

66MHz

3.5x

Pins 13 & 14 closed

CPU VOLTAGE SELECTION

Voltage

JP6

2.1v

Pins 11 & 12 closed

2.8v

Pins 9 & 10 closed

2.9v

Pins 7 & 8 closed

3.1v

Pins 5 & 6 closed

3.2v

Pins 3 & 4 closed

3.5v

Pins 1 & 2 closed
