Device Type

Mainboard

Processor

Celeron

Processor Speed

333/400MHz

Chip Set

Intel 440LX

Video Chip Set

ATI

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

8MB

Audio Chip Set

Creative

Cache

128KB (located on the Celeron CPU)

BIOS

Unidentified

Dimensions

244mm x 190mm

I/O Options

32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, wake on LAN connector, wake on modem connector

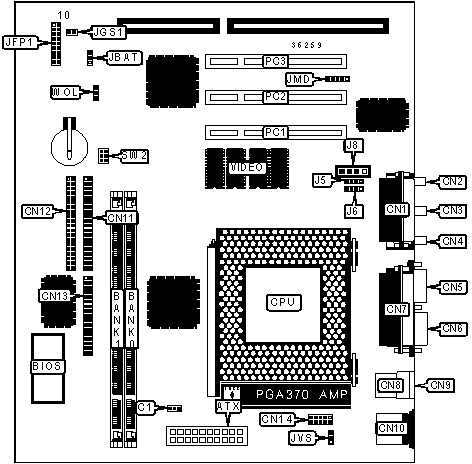

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Serial port 2

CN14

CPU fan power

C1

Auxiliary in

J5

Game/MIDI port

CN1

Modem in

J6

Microphone in

CN2

Audio in - CD-ROM

J8

Line in

CN3

Keylock

JFP1/pins 1 & 10

Line out

CN4

IDE interface LED

JFP1/pins 3 & 12

VGA port

CN5

Power LED

JFP1/pins 4 - 6

Serial port 1

CN6

Soft off power supply

JFP1/pins 7 & 8

Parallel port

CN7

Speaker

JFP1/pins 13 - 16

USB connector 1

CN8

Reset switch

JFP1/pins 17 & 18

USB connector 2

CN9

Green PC connector

JGS1

PS/2 mouse port

CN10

Wake on modem connector

JMD

IDE interface 2

CN11

32-bit PCI slots

PC1 - PC3

IDE interface 1

CN12

Wake on LAN connector

WOL

Floppy drive interface

CN13

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JBAT

Pins 1 & 2 closed

CMOS memory clear

JBAT

Pins 2 & 3 closed

»

Factory configured - do not alter

JVS

Unidentified

»

Factory configured - do not alter

SW2

Unidentified

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Note: 128KB cache is located on the Celeron 300A & 333 CPU.

VIDEO MEMORY CONFIGURATION

Note: The video memory is factory installed and is not configurable.
