FIRST INTERNATIONAL COMPUTER, INC.
VB-601-V
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 1GB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on CPU) |
| BIOS | Unidentified |
| Dimensions | 305mm x 203mm |
| I/O Options | 32-bit PCI slots (5), floppy
drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot |
| NPU Options | None |

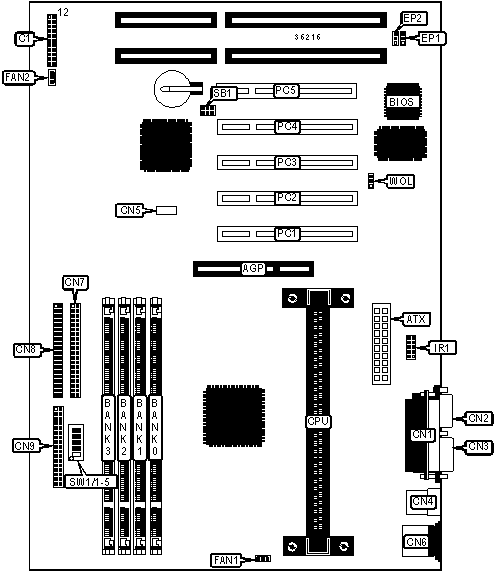

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Green PC connector | C1/pins 8 & 9 |
| ATX power connector | ATX |
Green PC LED | C1/pins 10 & 11 |
| Parallel port | CN1 |
Speaker | C1/pins 12 - 15 |
| Serial port 2 | CN2 |
IDE interface LED | C1/pins 16 & 17 |
| Serial port 1 | CN3 |
Soft off power supply | C1/pins 18 & 19 |
| USB connector 1 | CN4 |
Reset switch | C1/pins 20 & 21 |
| USB connector 2 | CN5 |
CPU fan power | FAN1 |
| PS/2 mouse port | CN6 |
Chassis fan power | FAN2 |
| IDE interface 2 | CN7 |
IR connector | IR1 |
| IDE interface 1 | CN8 |
32-bit PCI slots | PC1 - PC5 |
| Floppy drive interface | CN9 |
SB-link connector | SB1 |
| Power LED & keylock | C1/pins 1 - 5 |
Wake on LAN connector | WOL |
| Turbo LED | C1/pins 6 & 7 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | SW1/5 |
Off |
| CMOS memory clear | SW1/5 |
On |
|
» |
Password disabled | SW1/6 |
Off |
| Password enabled | SW1/6 |
On |
|
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
None |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
DIMM CONFIGURATION (CON'T) |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
None |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
None |
176MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
280MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
448MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
640MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
1024MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board accepts EDO & SDRAM memory. | ||||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
233MHz |
66MHz |
3.5x |
On |
Off |
On |
Off |
266MHz |
66MHz |
4x |
On |
On |
Off |
On |
300MHz |
66MHz |
4.5x |
On |
On |
Off |
Off |
333MHz |
66MHz |
5x |
On |
Off |
Off |
On |
350MHz |
100MHz |
3.5x |
On |
Off |
On |
Off |
400MHz |
100MHz |
4x |
On |
On |
Off |
On |
450MHz |
100Mhz |
4.5x |
On |
On |
Off |
Off |
FLASH BIOS SELECTION |
||
Type |
EP1 |
EP2 |
AMD AM29F002T |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
ATMEL AT29C010A |
Pins 2 & 3 closed |
Open |
ATMEL AT29C020 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Intel 28F001 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
MXIC MX28F1000 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
MXIC MX28F2000P |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
SST 29EE010 |
Pins 2 & 3 closed |
Open |
SST 29EE020 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
