FIRST INTERNATIONAL COMPUTER, INC.

PA-2012
Processor CX 6x86L/IBM 6x86L/CX 686MX/IBM 6x86MX/AM K6/AM K6-2/Pentium
Processor Speed 90/100/120/133/150/166/180/200/233MHz
Chip Set VIA
Maximum Onboard Memory 768MB (EDO & SDRAM supported)
Cache 512/1024KB
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot
NPU Options None

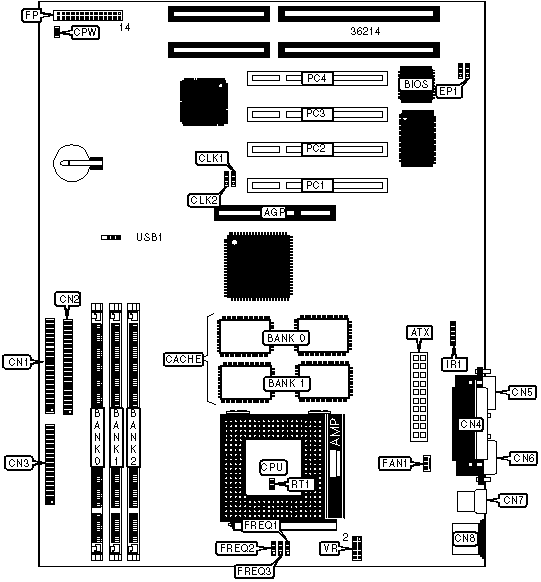

CONNECTIONS
Purpose

Location

 Purpose

Location
AGP slot

AGP

 Power LED & keylock

FP/pins 1 - 5
ATX power connector

ATX

 Turbo LED

FP/pins 7 & 8
Chassis alarm connector

CHS

 Green PC connector

FP/pins 10 & 11
IDE interface 1

CN1

 Green PC LED

FP/pins 13 & 14
IDE interface 2

CN2

 Speaker

FP/pins 15 - 18
Floppy drive interface

CN3

 IDE interface LED

FP/pins 20 & 21
Parallel port

CN4

 Remote power connector

FP/pins 23 & 24
Serial port 2

CN5

 Reset switch

FP/pins 27 & 28
Serial port 1

CN6

 IR connector

IR1
USB connector

CN7

 32-bit PCI slots

PC1 – PC4
PS/2 mouse port

CN8

 CPU thermistor

RT1
CPU fan power

FAN1

 USB connector

USB1
Chassis fan power

FAN2




USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Password disabled

CPW

Open
  Password enabled

CPW

Closed
Note: J4 and J5 select USB options. Further information is unavailable.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

None

48MB

(1) 4M x 64

(1) 2M x 64

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

None

80MB

(1) 8M x 64

(1) 2M x 64

None

96MB

(1) 8M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

None

144MB

(1) 16M x 64

(1) 2M x 64

None

160MB

(1) 16M x 64

(1) 4M x 64

None

192MB

(1) 16M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 16M x 64

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note: Board accepts EDO & SDRAM memory.


CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

512KB

(2) 64K x 32

None

(1) 16K/32K x 8

1MB

(2) 64K x 32

(2) 64K x 32

(1) 32K x 8


CPU SPEED SELECTION (CX M1)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX M2)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

150MHz

60MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

166MHz

66MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

180MHz

75MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

225MHz

75MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (IBM M1)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

133MHz

55MHz

2x

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (IBM M2)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

150MHz

60MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

166MHz

66MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

180MHz

75MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

225MHz

75MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

90MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

120MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

133MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

150MHz

60MHz

1.75x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

166MHz

66MHz

1.75x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

166MHz

66MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

CLK1

CLK2

FREQ1

FREQ2

FREQ3

90MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

133MHz

66MHz

2x

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

150MHz

60MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

166MHz

66MHz

2.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

233MHz

66MHz

3.5

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU VOLTAGE SELECTION (SINGLE)

Voltage

VR

3.3v

Pins 3 & 4 closed

3.5v

Pins 1 & 2 closed


CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

VR

2.8v

3.3v

Pins 9 & 10 closed

2.9v

3.3v

Pins 7 & 8 closed

3.2v

3.3v

Pins 5 & 6 closed


FLASH BIOS SELECTION

Type

EP1

EP2

AMD (1M)

Pins 1 & 2 closed

Pins 1 & 2 closed

ATMEL (1M)

Pins 1 & 2 closed

Pins 1 & 2 closed

Intel (1M)

Pins 2 & 3 closed

Pins 1 & 2 closed

MX (1M)

Pins 2 & 3 closed

Pins 1 & 2 closed

SST (1M)

Pins 1 & 2 closed

Pins 1 & 2 closed

AMD (2M)

Pins 1 & 2 closed

Pins 2 & 3 closed

ATMEL (2M)

Pins 1 & 2 closed

Pins 2 & 3 closed

Intel (2M)

Pins 2 & 3 closed

Pins 2 & 3 closed

MX (2M)

Pins 2 & 3 closed

Pins 2 & 3 closed

SST (2M)

Pins 1 & 2 closed

Pins 2 & 3 closed
