SURIA COMPUTER CORPORATION
SC-5TVX
| Processor | CX 6x86/CX 6x86L/AM K5/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/180/200MHz |
| Chip Set | Intel |
| Maximum Onboard Memory | 128MB (EDO supported) |
| Cache | 256/512KB |
| BIOS | Award |
| Dimensions | 330mm x 218mm |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), USB connectors (2), IR connector, cache slot |
| NPU Options | None |

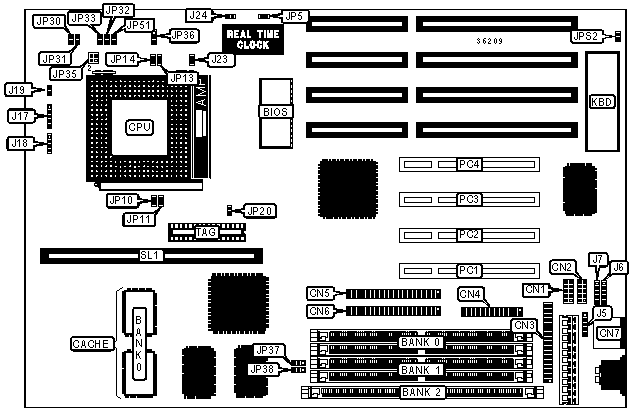

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Serial port 2 | CN1 |
USB connector 2 | J7 |
| Serial port 1 | CN2 |
Power LED & keylock | J17 |
| Floppy drive interface | CN3 |
Speaker | J18 |
| Parallel port | CN4 |
Reset switch | J19 |
| IDE interface 2 | CN5 |
Green PC connector | J23 |
| IDE interface 1 | CN6 |
IDE interface LED | J24 |
| PS/2 mouse port | CN7 |
32-bit PCI slots | PC1 - PC4 |
| IR connector | J5 |
Cache slot | SL1 |
| USB connector 1 | J6 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP5 |
Open |
| CMOS memory clear | JP5 |
Closed |
|
» |
Factory configured - do not alter | JP36 |
Pins 2 & 3 closed |
» |
PS/2 mouse disabled | JPS2 |
Open |
| PS/2 mouse enabled | JPS2 |
Closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
4MB |
(2) 512K x 36 |
None |
None |
8MB |
(2) 1M x 36 |
None |
None |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
None |
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
None |
12MB |
None |
(2) 512K x 36 |
(1) 1M x 64 |
16MB |
(2) 2M x 36 |
None |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
16MB |
None |
(2) 1M x 36 |
(1) 1M x 64 |
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
None |
20MB |
None |
(2) 512K x 36 |
(1) 2M x 64 |
24MB |
None |
(2) 1M x 36 |
(1) 2M x 64 |
24MB |
None |
(2) 2M x 36 |
(1) 1M x 64 |
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
None |
32MB |
None |
(2) 2M x 36 |
(1) 2M x 64 |
32MB |
(2) 4M x 36 |
None |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
36MB |
None |
(2) 512K x 36 |
(1) 4M x 64 |
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
None |
40MB |
None |
(2) 1M x 36 |
(1) 4M x 64 |
40MB |
None |
(2) 4M x 36 |
(1) 1M x 64 |
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
None |
48MB |
None |
(2) 4M x 36 |
(1) 2M x 64 |
DIMM CONFIGURATION (CON'T) |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
48MB |
None |
(2) 2M x 36 |
(1) 4M x 64 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
64MB |
None |
(2) 4M x 36 |
(1) 4M x 64 |
64MB |
(2) 8M x 36 |
None |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
68MB |
None |
(2) 512K x 36 |
(1) 8M x 64 |
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
None |
72MB |
None |
(2) 1M x 36 |
(1) 8M x 64 |
72MB |
None |
(2) 8M x 36 |
(1) 1M x 64 |
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
None |
80MB |
None |
(2) 8M x 36 |
(1) 2M x 64 |
80MB |
None |
(2) 2M x 36 |
(1) 8M x 64 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
96MB |
None |
(2) 8M x 36 |
(1) 4M x 64 |
96MB |
None |
(2) 4M x 36 |
(1) 8M x 64 |
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
None |
128MB |
None |
(2) 8M x 36 |
(1) 8M x 64 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
| Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable. | |||
DIMM VOLTAGE CONFIGURATION |
|||
Voltage |
JP37 |
JP38 |
|
| » | 3.3v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
5v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CACHE CONFIGURATION |
|||
Size |
Bank 0 |
SL1 |
TAG |
256KB |
None |
256KB module installed |
(1) 16K x 8 |
256KB |
(2) 32K x 32 |
None installed |
(1) 16K x 8 |
512KB |
(2) 32K x 32 |
256KB module installed |
(1) 16K x 8 |
CACHE JUMPER CONFIGURATION |
|
Size |
JP20 |
256KB |
Open |
512KB |
Closed |
| Note: JP20 may be labeled as JP7 on some versions. | |
CPU SPEED SELECTION (CYRIX) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP10 |
JP11 |
JP13 |
JP14 |
120MHz |
50MHz |
2x |
Closed |
Closed |
Closed |
Open |
133MHz |
55MHz |
2x |
Open |
Open |
Closed |
Open |
150MHz |
60MHz |
2x |
Open |
Closed |
Closed |
Open |
166MHz |
66MHz |
2x |
Closed |
Open |
Closed |
Open |
CPU SPEED SELECTION (AMD) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP10 |
JP11 |
JP13 |
JP14 |
75MHz |
50MHz |
1.5x |
Closed |
Closed |
Open |
Open |
90MHz |
55MHz |
1.5x |
Open |
Open |
Open |
Open |
100MHz |
55MHz |
1.5x |
Open |
Open |
Open |
Open |
90MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
100MHz |
66MHz |
1.5x |
Closed |
Open |
Open |
Open |
120MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
133MHz |
66MHz |
1.5x |
Closed |
Open |
Open |
Open |
150MHz |
60MHz |
2x |
Open |
Closed |
Closed |
Open |
166MHz |
66MHz |
2x |
Closed |
Open |
Closed |
Open |
CPU SPEED SELECTION (INTEL) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP10 |
JP11 |
JP13 |
JP14 |
75MHz |
50MHz |
1.5x |
Closed |
Closed |
Open |
Open |
90MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
100MHz |
50MHz |
2x |
Closed |
Closed |
Closed |
Open |
100MHz |
66MHz |
1.5x |
Closed |
Open |
Open |
Open |
120MHz |
60MHz |
2x |
Open |
Closed |
Closed |
Open |
133MHz |
66MHz |
2x |
Closed |
Open |
Closed |
Open |
150MHz |
60MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
180MHz |
60MHz |
3x |
Open |
Closed |
Open |
Closed |
200MHz |
66MHz |
3x |
Closed |
Open |
Open |
Closed |
CPU VOLTAGE SELECTION |
||||
Voltage |
JP30 |
JP31 |
JP35 |
|
| » | 3.3V (Standard or VR) |
Closed |
Open |
1 & 2, 3 & 4 |
3.45V - 3.6V (VRE) |
Open |
Closed |
1 & 2, 3 & 4 |
|
| Note: Pins designated are in the closed position | ||||
DUAL CPU VOLTAGE SELECTION |
||||
Voltage |
JP32 |
JP33 |
JP35 |
JP51 |
2.5V |
Open |
Open |
Open |
Closed |
2.7V - 2.8V |
Closed |
Open |
Open |
Open |
2.9V |
Open |
Closed |
Open |
Open |
