Device Type

Mainboard

Processor

Pentium II

Processor Speed

233/266/300/350/400/450MHz

Chip Set

Intel 440BX

Maximum Onboard Memory

512MB (EDO & SDRAM supported)

Cache

256/512KB (located on Pentium II CPU)

BIOS

Award

Dimensions

305mm x 250mm

I/O Options

IR connector, USB connectors (2), ATX power connector, RAID slot

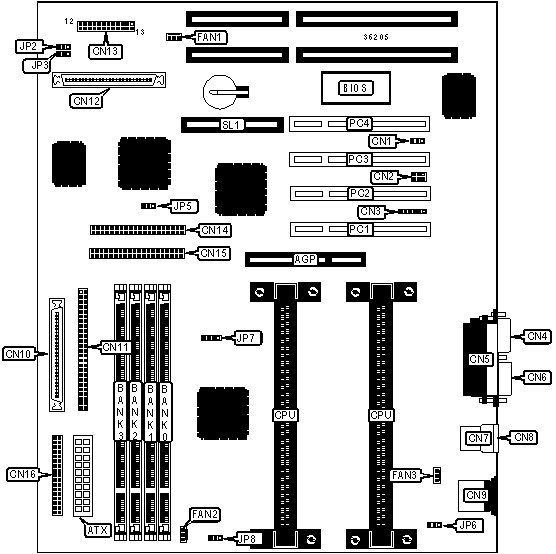

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Green LED

CN13/pins 6 & 7

ATX power connector

ATX

Reset switch

CN13/pins 9 & 10

Wake on LAN connector

CN1

IDE interface LED

CN13/pins 11 & 12

SB-Link header

CN2

Power LED

CN13/pins 13 - 15

IR connector

CN3

Key lock

CN13/pins 16 & 17

Serial port 2

CN4

Speaker

CN13/pins 19 - 22

Parallel port

CN5

Soft off power supply

CN13/pins 23 & 24

Serial port 1

CN6

IDE interface 1

CN14

USB connector 1

CN7

IDE interface 2

CN15

USB connector 2

CN8

Floppy drive interface

CN16

PS/2 mouse port

CN9

System fan power

FAN1

SCSI-2 interface

CN10

CPU 1 chassis fan power

FAN2

SCSI-2 interface

CN11

CPU 2 chassis fan power

FAN3

SCSI-Ultra 2 interface

CN12

Chassis intrusion connector

JP8

Turbo LED

CN13/pins 1 & 2

32-bit PCI slots

PC1 - PC4

Green PC connector

CN13/pins 4 & 5

RAID slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP2

Pins 1 & 2 closed

CMOS memory clear

JP2

Pins 2 & 3 closed

»

Power failure recovery disabled

JP3

Pins 1 & 2 closed

Power failure recovery enabled

JP3

Pins 2 & 3 closed

»

On-board SCSI enabled

JP5

Pins 1 & 2 closed

On-board SCSI disabled

JP5

Pins 2 & 3 closed

Power-on keyboard disabled

JP6

Pins 1 & 2 closed

Power-on keyboard enabled

JP6

Pins 2 & 3 closed

CLOCK SPEED SELECTION

Setting

JP7

»

External clock frequency determined by CPU

Pins 1 & 2 closed

External clock frequency set to 66MHz

Pins 2 & 3 closed

External clock frequency set to 100MHz

Pins 3 & 4 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

None

16MB

(1) 2M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

24MB

(1) 2M x 64

(1) 1M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

None

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

40MB

(1) 4M x 64

(1) 1M x 64

None

None

48MB

(1) 4M x 64

(1) 2M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

72MB

(1) 8M x 64

(1) 1M x 64

None

None

80MB

(1) 8M x 64

(1) 2M x 64

None

None

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 16M x 64

None

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

136MB

(1) 16M x 64

(1) 1M x 64

None

None

144MB

(1) 16M x 64

(1) 2M x 64

None

None

176MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.
