ABIT COMPUTER CORPORATION
BX6 (VER.2.0)
|
Device Type |
Mainboard |
|
Processor |
Pentium II/Celeron |
|
Processor Speed |
233/266/300/333/350/400/450MHz |
|
Chip Set |
Intel 440BX |
|
Maximum Onboard Memory |
1GB SDRAM |
|
Cache |
0/128/256/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
305mm x 190mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard connector, serial ports (2), AGP slot SB-link header, IR connector, USB connector, ATX power connector |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|

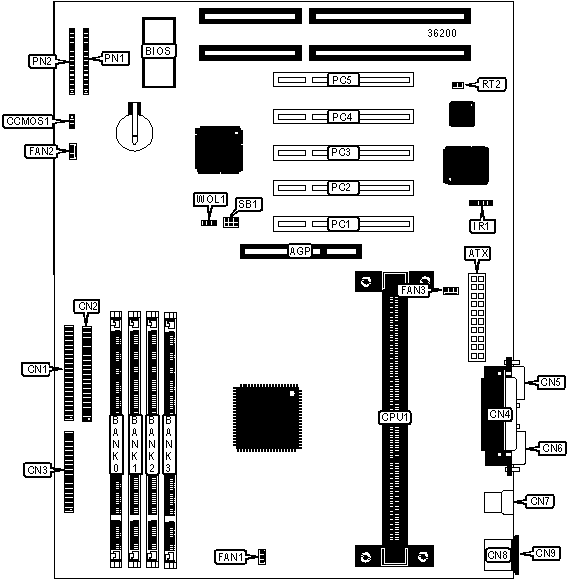

AGP slot |
AGP |
Chassis fan power |
FAN3 |
|
ATX power connector |
ATX |
IR connector |
IR1 |
|
IDE interface 1 |
CN1 |
32-bit PCI slots |
PC1 - PC5 |
|
IDE interface 2 |
CN2 |
Power LED & keylock |
PN1/pins 1 - 5 |
|
Floppy drive interface |
CN3 |
IDE interface LED |
PN1/pins 7 & 8 |
|
Parallel port |
CN4 |
Soft off power supply |
PN1/pins 10 & 11 |
|
Serial port 2 |
CN5 |
SMI switch header |
PN1/pins 13 & 14 |
|
Serial port 1 |
CN6 |
Reset switch |
PN2/pins 1 & 2 |
|
USB connector |
CN7 |
Speaker |
PN2/pins 4 - 7 |
|
PS/2 mouse port |
CN8 |
Green PC LED |
PN2/pins 9 & 10 |
|
PS/2 keyboard connector |
CN9 |
Thermister header (optional) |
RT2 |
|
CPU fan power |
FAN1 |
SB-Link header |
SB1 |
|
Chassis fan power |
FAN2 |
Wake on LAN connector |
WOL1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
CCMOS1 |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
CCMOS1 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8 |
(1) 1M x 64 |
None |
None |
None |
|
16 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
|
16 |
(1) 2M x 64 |
None |
None |
None |
|
24 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24 |
(1) 2M x 64 |
(1) 1M x 64 |
None |
None |
|
32 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
|
32 |
(1) 4M x 64 |
None |
None |
None |
|
32 |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
40 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
48 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
48 |
(1) 4M x 64 |
(1) 2M x 64 |
None |
None |
|
56 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
|
64 |
(1) 8M x 64 |
None |
None |
None |
|
64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
80 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
96 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
96 |
(1) 8M x 64 |
(1) 4M x 64 |
None |
None |
|
DIMM CONFIGURATION (C0NT.) |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
112 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
|
128 |
(1) 16M x 64 |
None |
None |
None |
|
128 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
160 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
192 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
192 |
(1) 16M x 64 |
(1) 8M x 64 |
None |
None |
|
224 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
256 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
|
256 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
320 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
384 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
448 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
|
512 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
|
768 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
1024 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: The board accepts up to 1GB SDRAM |
||||
|
CACHE CONFIGURATION |
|
The 0/128KB cache is located on the Celeron 300A & 333 CPU. The 256/512KB cache is located on the Pentium II CPU. |
