GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586ATX4
|
Device Type |
Mainboard |
|
Processor |
P54CT/P54CTB/CX 6x86/IBM 6x86/CX 6x86L/IBM 6x86L/CX 6x86MX/IBM 6x86MX/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
256MB (EDO & SDRAM supported) |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
193mm x 304mm |
|
I/O Options (backplane) |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), USB connector, ATX power connector |
|

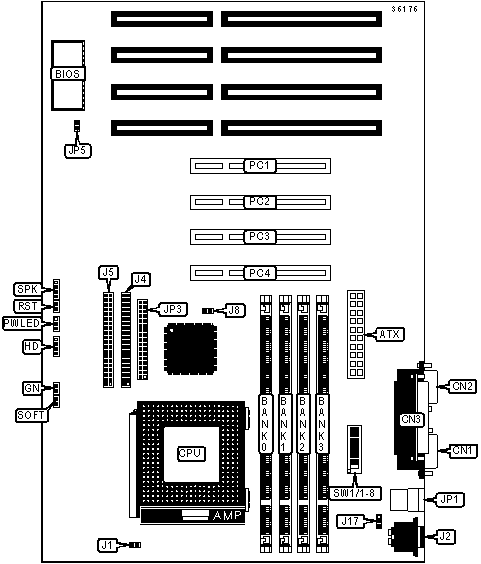

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
IDE interface 1 |
J5 |
|
Serial port 1 |
CN1 |
USB connector |
JP1 |
|
Serial port 2 |
CN2 |
Floppy drive interface |
JP3 |
|
Parallel port |
CN3 |
32-bit PCI slots |
PC1 - PC4 |
|
Green PC connector |
GN |
Power LED |
PWLED |
|
IDE interface LED |
HD |
Reset switch |
RST |
|
CPU fan power |
J1 |
Soft off power supply |
SOFT |
|
PS/2 mouse port |
J2 |
Speaker |
SPK |
|
IDE interface 2 |
J4 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Keyboard power on disabled |
J17 |
Pins 2 & 3 closed |
|
|
Keyboard power on enabled |
J17 |
Pins 1 & 2 closed |
|
|
Enable full on after AC back |
JP5 |
Closed |
|
|
Enable soft off after AC back |
JP5 |
Open |
|
DIMM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(1) 1M x 64 |
None |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
None |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
56MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
64MB |
(1) 8M x 64 |
None |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
None |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
88MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
None |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
104MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
104MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
120MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
168MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
200MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
CPU SPEED SELECTION (INTEL) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
On |
Off |
Open |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
On |
Off |
Open |
|
120MHz |
60MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
133MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
180MHz |
60MHz |
3x |
Off |
Off |
On |
Off |
Open |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (INTEL MMX) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
Open |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (P54CT) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (P54CT CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (P54CTB) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (P54CTB CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
180MHz |
60MHz |
3x |
Off |
Off |
On |
Off |
Open |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (AM K5) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
133MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K5 CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
133MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (AM K6) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (AM K6 CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
Open |
|
180MHz |
60MHz |
3x |
Off |
On |
On |
Off |
Open |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
Open |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
On |
Off |
Open |
|
CPU SPEED SELECTION (CX/IBM 6X86) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
200MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86 CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
150MHz |
60MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
200MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Closed |
|
CPU SPEED SELECTION (CX/IBM 6X86L) |
||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
200MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86L CON'T) |
|||||||
|
CPU speed |
Clock Speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
150MHz |
60MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
166MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Open |
|
200MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
Closed |
|
CPU SPEED SELECTION (CX/IBM 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
75MHz |
2.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86MX CON'T) |
|||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
J8 |
|
166MHz |
60MHz |
2.5x |
Off |
On |
On |
Off |
Open |
|
166MHz |
66MHz |
2x |
Off |
On |
On |
Off |
Open |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
Open |
|
200MHz |
75MHz |
2x |
Off |
On |
On |
Off |
Closed |
|
233MHz |
66MHz |
3x |
Off |
On |
On |
Off |
Open |
|
233MHz |
75MHz |
2.5x |
Off |
On |
On |
Off |
Closed |
