GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586SGX
|
Device Type |
Mainboard |
|
Processor |
CX 6x86/IBM 6x86/CX 6x86L/IBM 6x86L/CX 6x86MX/IBM 6x86MX/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/180/200/233/266MHz |
|
Chip Set |
SIS |
|
Maximum Onboard Memory |
768MB (EDO & SDRAM supported) |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
305mm x 170mm |
|
I/O Options (backplane) |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot |
|

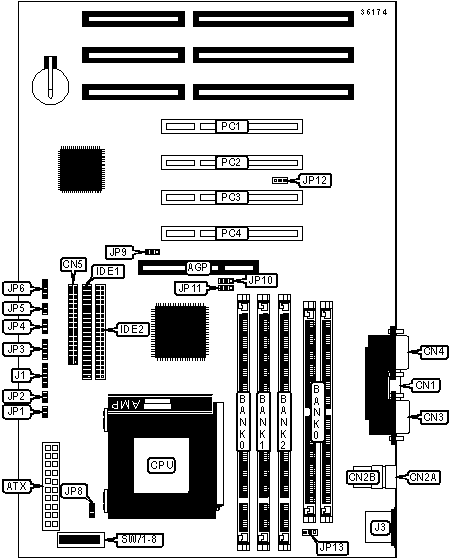

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
PS/2 mouse port |
J3 |
|
ATX power connector |
ATX |
Soft off power supply |
JP1 |
|
Parallel port |
CN1 |
Green PC connector |
JP2 |
|
USB connector 1 |
CN2A |
IDE interface LED |
JP3 |
|
USB connector 2 |
CN2B |
Power LED |
JP4 |
|
Serial port 2 |
CN3 |
Reset switch |
JP5 |
|
Serial port 1 |
CN4 |
Speaker |
JP6 |
|
Floppy drive interface |
CN5 |
CPU fan power |
JP8 |
|
IDE interface 1 |
IDE1 |
Wak-on-lan connector |
JP9 |
|
IDE interface 2 |
IDE2 |
32-bit PCI slots |
PC1 - PC4 |
|
IR connector |
J1 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Factory configured - do not alter |
JP12 |
Unidentified |
|
» |
Keyboard power on disabled |
JP13 |
Pins 2 & 3 closed |
|
|
Keyboard power on enabled |
JP13 |
Pins 1 & 2 closed |
|
SIMM CONFIGURATION |
|
|
Size |
Bank 0 |
|
8MB |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 1M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
72MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
Note: DIMM Bank 2 can not be used if memory is loaded in the SIMM slots. |
|||
|
CPU SPEED SELECTION (INTEL) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
90MHz |
On |
Off |
Off |
Off |
|
100MHz |
Off |
Off |
Off |
Off |
|
120MHz |
On |
On |
Off |
Off |
|
133MHz |
Off |
On |
Off |
Off |
|
150MHz |
On |
On |
On |
Off |
|
166MHz |
Off |
On |
On |
Off |
|
180MHz |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
90MHz |
Off |
Off |
On |
Off |
|
100MHz |
Off |
Off |
On |
Off |
|
120MHz |
Off |
Off |
On |
Off |
|
133MHz |
Off |
Off |
On |
Off |
|
150MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
180MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
90MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
100MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
120MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
133MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
150MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
180MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (INTEL MMX) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
150MHz |
On |
On |
On |
Off |
|
166MHz |
Off |
On |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
233MHz |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
150MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
233MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
150MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
233MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (P54CT) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
150MHz |
On |
On |
On |
Off |
|
166MHz |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (P54CT CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
150MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (P54CT CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
150MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (P54CTB) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
150MHz |
On |
On |
On |
Off |
|
166MHz |
Off |
On |
On |
Off |
|
180MHz |
On |
Off |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (P54CTB CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
150MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
180MHz |
Off |
Off |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (P54CTB CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
150MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
180MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (AM K5) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
133MHz |
Off |
On |
Off |
Off |
|
166MHz |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K5 CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
133MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K5 CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
133MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (AM K6) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
166MHz |
Off |
On |
On |
Off |
|
180MHz |
On |
Off |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
233MHz |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K6 CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
166MHz |
Off |
On |
On |
Off |
|
180MHz |
Off |
On |
On |
Off |
|
200MHz |
Off |
On |
On |
Off |
|
233MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K6 CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
180MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
233MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (CX/IBM 6X86) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
120MHz |
On |
On |
Off |
Off |
|
133MHz |
Off |
On |
Off |
Off |
|
150MHz |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86 CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
120MHz |
Off |
Off |
On |
Off |
|
133MHz |
Off |
Off |
On |
Off |
|
150MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86 CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
120MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
133MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
150MHz |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (CX/IBM 6X86L) |
||||
|
CPU speed |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
150MHz |
On |
On |
Off |
Off |
|
166MHz |
Off |
On |
Off |
Off |
|
200MHz |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86L CON'T) |
||||
|
CPU speed |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
150MHz |
Off |
Off |
On |
Off |
|
166MHz |
Off |
Off |
On |
Off |
|
200MHz |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX/IBM 6X86L CON'T) |
|||
|
CPU speed |
JP9 |
JP10 |
JP11 |
|
150MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. |
|||
|
CPU SPEED SELECTION (IBM/CX 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW/1 |
SW/2 |
SW/3 |
SW/4 |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
200MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
Off |
On |
Off |
Off |
|
233MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
75MHz |
2.5x |
Off |
On |
On |
Off |
|
233MHz |
83MHz |
2x |
On |
On |
Off |
Off |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
266MHz |
75MHz |
3x |
Off |
Off |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (IBM/CX 6X86MX CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW/5 |
SW/6 |
SW/7 |
SW/8 |
|
150MHz |
60MHz |
2x |
Off |
On |
On |
Off |
|
166MHz |
60MHz |
2.5x |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
On |
Off |
|
200MHz |
60MHz |
3x |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
Off |
On |
On |
Off |
|
233MHz |
66MHz |
3x |
Off |
On |
On |
Off |
|
233MHz |
75MHz |
2.5x |
Off |
On |
On |
Off |
|
233MHz |
83MHz |
2x |
Off |
On |
On |
Off |
|
266MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
|
266MHz |
75MHz |
3x |
Off |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (IBM/CX 6X86MX CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
JP9 |
JP10 |
JP11 |
|
150MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
60MHz |
2.5x |
2 & 3 |
1 & 2 |
1 & 2 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
60MHz |
3x |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
66MHz |
2.5x |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
75MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
|
233MHz |
66MHz |
3x |
2 & 3 |
1 & 2 |
1 & 2 |
|
233MHz |
75MHz |
2.5x |
1 & 2 |
2 & 3 |
1 & 2 |
|
233MHz |
83MHz |
2x |
1 & 2 |
1 & 2 |
2 & 3 |
|
266MHz |
66MHz |
3.5x |
2 & 3 |
1 & 2 |
1 & 2 |
|
266MHz |
75MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
|
266MHz |
83MHz |
2.5x |
1 & 2 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
|||||
