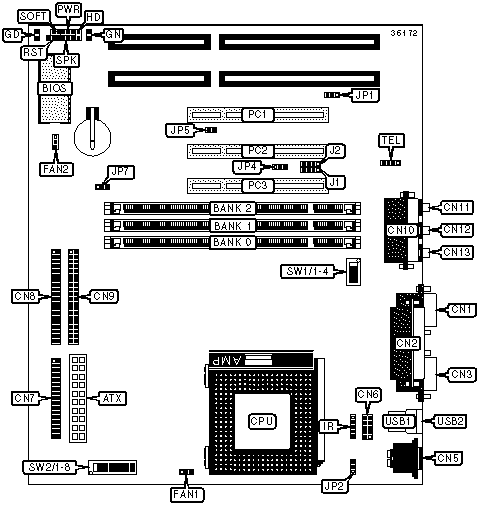

GIGA-BYTE TECHNOLOGY CO., LTD.
GA-5SMM
|
Device Type |
Mainboard |
|
Processor |
CX 6x86MX/IBM 6x86MX/CX MII/AM K6/AM K6-2/AM K6-3/Pentium/Pentium MMX |
|
Processor Speed |
133/166/200/225/233/266/300/333/350/366/400/450MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
Unidentified |
|
Audio Chip Set |
ESS |
|
Maximum Onboard Memory |
768MB |
|
Maximum Video Memory |
Unidentified |
|
Maximum Audio Memory |
Unidentified |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
Unidentified |
|
I/O Options (backplane) |
32-bit PCI slots (3), floppy drive interface, game port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2) |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Green PC connector |
GN |
|
VGA port |
CN1 |
IDE interface LED |
HD |
|
Parallel port |
CN2 |
IR connector |
IR |
|
Serial port 1 |
CN3 |
Audio in - CD-ROM |
J1 |
|
PS/2 mouse port |
CN5 |
Audio in - CD-ROM |
J2 |
|
Serial 2 interface |
CN6 |
Wake-on-lan connector |
JP4 |
|
Floppy drive interface |
CN7 |
Microphone in |
JP5 |
|
IDE interface 1 |
CN8 |
32-bit PCI slots |
PC1 - PC3 |
|
IDE interface 2 |
CN9 |
Power LED |
PWR |
|
Game port |
CN10 |
Reset switch |
RST |
|
Microphone in |
CN11 |
Speaker |
SPK |
|
Line in |
CN12 |
Soft off power supply |
SOFT |
|
Line out |
CN13 |
Modem internal voice connector |
TEL |
|
CPU fan power |
FAN1 |
USB connector 1 |
USB1 |
|
System fan power |
FAN2 |
USB connector 2 |
USB2 |
|
Green PC LED |
GD |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Normal CMOS operation |
J7 |
Pins 2 & 3 closed |
|
|
Clear CMOS |
J7 |
Pins 1 & 2 closed |
|
» |
On-board sound enabled |
JP1 |
Pins 1 & 2 closed |
|
|
On-board sound disabled |
JP1 |
Pins 2 & 3 closed |
|
» |
Keyboard power on disabled |
JP2 |
Pins 2 & 3 closed |
|
|
Keyboard power on enabled |
JP2 |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP7 |
Unidentified |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
16MB |
(1) 2M x 64 |
None |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 32MB x 64 |
None |
None |
|
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
None |
|
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
None |
|
304MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
None |
|
336MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
352MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
|
400MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
|
416MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
|
448MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
|
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
|
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
|
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
|
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
CPU SPEED SELECTION (INTEL) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
On |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
On |
|
CPU SPEED SELECTION (INTEL CON'T) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
133MHz |
66MHz |
2x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (INTEL CON'T) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
133MHz |
66MHz |
2x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (INTEL MMX) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
133MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
3x |
Off |
On |
Off |
Off |
|
200MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
133MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
|
166MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
200MHz |
66MHz |
3.5x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
||||||
|
Speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
133MHz |
66MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
3x |
On |
On |
On |
Off |
|
200MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K6) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
166MHz |
66MHz |
2x |
On |
On |
Off |
On |
|
200MHz |
66MHz |
2.5x |
Off |
On |
Off |
On |
|
233MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
On |
Off |
On |
Off |
|
300MHz |
66MHz |
4.5x |
On |
On |
On |
Off |
|
300MHz |
100MHz |
3x |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (AM K6 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
166MHz |
66MHz |
2x |
On |
On |
Off |
Off |
|
200MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
|
233MHz |
66MHz |
3x |
On |
Off |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
Off |
|
300MHz |
66MHz |
4.5x |
Off |
On |
On |
Off |
|
300MHz |
100MHz |
3x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K6 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
66MHz |
2x |
On |
On |
On |
Off |
|
200MHz |
66MHz |
2.5x |
On |
On |
On |
Off |
|
233MHz |
66MHz |
3x |
On |
On |
On |
Off |
|
233MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
266MHz |
66MHz |
4x |
On |
On |
On |
Off |
|
300MHz |
66MHz |
4.5x |
On |
On |
On |
Off |
|
300MHz |
100MHz |
3x |
On |
On |
Off |
Off |
|
CPU SPEED SELECTION (AM K6-2) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
266MHz |
66MHz |
4x |
On |
Off |
On |
Off |
|
300MHz |
100MHz |
3x |
Off |
On |
Off |
Off |
|
333MHz |
66MHz |
5x |
Off |
On |
On |
Off |
|
333MHz |
95MHz |
3.5x |
Off |
Off |
Off |
Off |
|
350MHz |
100MHz |
3.5x |
Off |
Off |
Off |
Off |
|
366MHz |
66MHz |
5.5x |
Off |
Off |
On |
Off |
|
380MHz |
95MHz |
4x |
On |
Off |
On |
Off |
|
400MHz |
100MHz |
4x |
On |
Off |
On |
Off |
|
450MHz |
100MHz |
4.5x |
On |
On |
On |
On |
|
CPU SPEED SELECTION (AM K6-2 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
266MHz |
66MHz |
4x |
On |
Off |
Off |
Off |
|
300MHz |
100MHz |
3x |
On |
Off |
Off |
Off |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
Off |
|
333MHz |
95MHz |
3.5x |
On |
Off |
Off |
Off |
|
350MHz |
100MHz |
3.5x |
On |
Off |
Off |
Off |
|
366MHz |
66MHz |
5.5x |
On |
Off |
Off |
Off |
|
380MHz |
95MHz |
4x |
On |
Off |
Off |
Off |
|
400MHz |
100MHz |
4x |
On |
Off |
Off |
Off |
|
450MHz |
100MHz |
4.5x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K6-2 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
266MHz |
66MHz |
4x |
On |
On |
On |
Off |
|
300MHz |
100MHz |
3x |
On |
On |
Off |
Off |
|
333MHz |
66MHz |
5x |
On |
On |
On |
Off |
|
333MHz |
95MHz |
3.5x |
Off |
Off |
On |
Off |
|
350MHz |
100MHz |
3.5x |
On |
On |
Off |
Off |
|
366MHz |
66MHz |
5.5x |
On |
On |
On |
Off |
|
380MHz |
95MHz |
4x |
Off |
Off |
On |
Off |
|
400MHz |
100MHz |
4x |
On |
On |
Off |
Off |
|
450MHz |
100MHz |
4.5x |
On |
On |
Off |
Off |
|
CPU SPEED SELECTION (AM K6-3) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
400MHz |
100MHz |
4x |
On |
Off |
On |
On |
|
450MHz |
100MHz |
4.5x |
On |
On |
On |
On |
|
CPU SPEED SELECTION (AM K6-3 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
400MHz |
100MHz |
4x |
On |
Off |
Off |
Off |
|
450MHz |
100MHz |
4.5x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K6-3 CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
400MHz |
100MHz |
4x |
On |
On |
Off |
Off |
|
450MHz |
100MHz |
4.5x |
On |
On |
Off |
Off |
|
CPU SPEED SELECTION (IBM/CX 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
On |
|
200MHz |
66MHz |
2.5x |
On |
On |
Off |
On |
|
200MHz |
75MHz |
2x |
On |
Off |
Off |
On |
|
233MHz |
66MHz |
3x |
Off |
On |
Off |
On |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
On |
|
233MHz |
83MHz |
2x |
On |
Off |
Off |
On |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
Off |
On |
|
266MHz |
75MHz |
3x |
Off |
On |
Off |
On |
|
266MHz |
83MHz |
2.5x |
On |
On |
Off |
On |
|
CPU SPEED SELECTION (IBM/CX 6X86MX CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
166MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
On |
Off |
|
200MHz |
75MHz |
2x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
75MHz |
2.5x |
Off |
Off |
On |
Off |
|
233MHz |
83MHz |
2x |
Off |
Off |
On |
Off |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
On |
Off |
|
266MHz |
75MHz |
3x |
Off |
Off |
On |
Off |
|
266MHz |
83MHz |
2.5x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (IBM/CX 6X86MX CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
66MHz |
2x |
On |
On |
On |
Off |
|
200MHz |
66Mhz |
2.5x |
On |
On |
On |
Off |
|
200MHz |
75MHz |
2x |
Off |
On |
On |
Off |
|
233MHz |
66MHz |
3x |
On |
On |
On |
Off |
|
233MHz |
75MHz |
2.5x |
Off |
On |
On |
Off |
|
233MHz |
83MHz |
2x |
On |
Off |
On |
Off |
|
266MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
266MHz |
75MHz |
3x |
Off |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX MII) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
300MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
333MHz |
66MHz |
4x |
On |
Off |
On |
Off |
|
333MHz |
83MHz |
3x |
Off |
On |
Off |
Off |
|
333MHz |
75MHz |
3.5x |
Off |
Off |
Off |
Off |
|
333MHz |
100MHz |
2.5x |
On |
On |
Off |
Off |
|
350MHz |
90MHz |
3x |
Off |
On |
Off |
Off |
|
366MHz |
75MHz |
4x |
On |
Off |
On |
Off |
|
366MHz |
83MHz |
3.5x |
Off |
Off |
Off |
Off |
|
366MHz |
100MHz |
3x |
Off |
On |
Off |
Off |
|
400MHz |
90MHz |
4x |
On |
Off |
On |
On |
|
400MHz |
100MHz |
3.5x |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (CX MII CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
300MHz |
66MHz |
3.5x |
Off |
Off |
On |
Off |
|
333MHz |
66MHz |
4x |
Off |
Off |
On |
Off |
|
333MHz |
83MHz |
3x |
Off |
Off |
On |
Off |
|
333MHz |
75MHz |
3.5x |
Off |
Off |
On |
Off |
|
333MHz |
100MHz |
2.5x |
Off |
Off |
On |
Off |
|
350MHz |
90MHz |
3x |
Off |
Off |
On |
Off |
|
366MHz |
75MHz |
4x |
Off |
Off |
On |
Off |
|
366MHz |
83MHz |
3.5x |
Off |
Off |
On |
Off |
|
366MHz |
100MHz |
3x |
Off |
Off |
On |
Off |
|
400MHz |
90MHz |
4x |
Off |
Off |
On |
Off |
|
400MHz |
100MHz |
3.5x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX MII CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
300MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
333MHz |
66Mhz |
4x |
On |
On |
On |
Off |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
Off |
|
333MHz |
75MHz |
3.5x |
Off |
On |
On |
Off |
|
333MHz |
100MHz |
2.5x |
On |
On |
Off |
Off |
|
350MHz |
90MHz |
3x |
On |
On |
On |
On |
|
366MHz |
75MHz |
4x |
Off |
On |
On |
Off |
|
366MHz |
83MHz |
3.5x |
On |
Off |
On |
Off |
|
366MHz |
100MHz |
3x |
On |
On |
Off |
Off |
|
400MHz |
90MHz |
4x |
On |
On |
On |
On |
|
400MHz |
100MHz |
3.5x |
On |
On |
Off |
Off |
|
CPU SPEED SELECTION (IDT) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
On |
|
200MHz |
100MHz |
2x |
On |
Off |
Off |
On |
|
225MHz |
75MHz |
3x |
Off |
On |
Off |
On |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
On |
|
233MHz |
100MHz |
2.33x |
Off |
On |
On |
On |
|
266MHz |
66MHz |
4x |
On |
Off |
On |
On |
|
266MHz |
100MHz |
2.66x |
Off |
Off |
On |
On |
|
CPU SPEED SELECTION (IDT CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
200MHz |
66MHz |
3x |
On |
On |
On |
Off |
|
200MHz |
100MHz |
2x |
On |
On |
On |
Off |
|
225MHz |
75MHz |
3x |
On |
On |
On |
Off |
|
233MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
233MHz |
100MHz |
2.33x |
On |
On |
On |
Off |
|
266MHz |
66MHz |
4x |
On |
On |
On |
Off |
|
266MHz |
100MHz |
2.66x |
On |
On |
On |
Off |
|
CPU SPEED SELECTION (IDT CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
200MHz |
66MHz |
3x |
On |
On |
On |
Off |
|
200MHz |
100MHz |
2x |
On |
On |
Off |
Off |
|
225MHz |
75MHz |
3x |
Off |
On |
On |
Off |
|
233MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
233MHz |
100MHz |
2.33x |
On |
On |
Off |
Off |
|
266MHz |
66MHz |
3.5x |
On |
On |
On |
Off |
|
266MHz |
100MHz |
2.66x |
On |
On |
Off |
Off |
