BOSER TECHNOLOGY CO., LTD.
HS-5000
|
Device Type |
Single board computer |
|
Processor |
CX 6X86/CX MII/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
128MB (EDO, BEDO & Fast Page DRAM supported) |
|
Maximum Video Memory |
1MB |
|
Cache |
512KB |
|
BIOS |
AMI |
|
Dimensions |
185mm x 122mm |
|
I/O Options (backplane) |
floppy drive interface, game port, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2) |
|
Data Bus |
16-bit ISA |
|

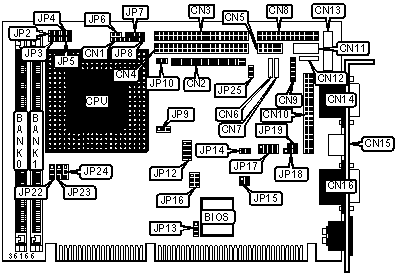

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
CN1 |
Ground terminal |
CN11 |
|
LCD panel connector |
CN2 |
IR connector |
CN12 |
|
IDE interface |
CN3 |
Power connector |
CN13 |
|
IDE interface 2 |
CN4 |
VGA port |
CN14 |
|
Serial port interface |
CN5 |
PS/2 mouse port |
CN15 |
|
USB connector |
CN6 |
Serail port |
CN16 |
|
USB connector 2 |
CN7 |
Reset switch |
JP6 |
|
Parallel port |
CN8 |
Speaker connector |
JP7 |
|
Keyboard interface |
CN9 |
IDE LED connector |
JP8 |
|
Floppy drive interface |
CN10 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
|
Set DiskOnChip address to D000 |
JP15 |
Pins 1 & 2 closed |
|
» |
Set DiskOnChip address to D800 |
JP15 |
Pins 3 & 4 closed |
|
» |
Enable CPU temperature alarm |
JP25 |
Closed |
|
|
Disable CPU temperature alarm |
JP25 |
Open |
|
SIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
WATCH-DOG TIMER CONTROL |
|
|
Setting |
JP18 |
|
Enable Watch-dog timer to reset system |
Pins 1 & 2 closed |
|
Enable Watch-dog timer to activate NMI to CPU |
Pins 2 & 3 closed |
|
Disabled Watch-dog timer |
Open |
|
WATCH-DOG TIMER SETTINGS |
||||
|
Setting |
JP17/1 & 2 |
JP17/3 & 4 |
JP17/5 & 6 |
JP17/7 & 8 |
|
1 second |
Open |
Open |
Closed |
Open |
|
2 second |
Open |
Open |
Closed |
Closed |
|
10 seconds |
Open |
Closed |
Open |
Open |
|
20 seconds |
Open |
Closed |
Open |
Closed |
|
110 seconds |
Closed |
Open |
Open |
Open |
|
220 seconds |
Closed |
Open |
Open |
Closed |
|
CPU SPEED SELECTION (INTEL) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
90MHz |
Off |
On |
Off |
|
100MHz |
Off |
On |
Off |
|
120MHz |
On |
On |
Off |
|
133MHz |
On |
On |
Off |
|
150MHz |
On |
On |
On |
|
166MHz |
Off |
On |
On |
|
180MHz |
Off |
On |
On |
|
200MHz |
Off |
On |
On |
|
CPU SPEED SELECTION (INTEL CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
90MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
100MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
120MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
133MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
150MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
166MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
180MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
200MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU SPEED SELECTION (INTEL MMX) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
166MHz |
On |
On |
On |
|
200MHz |
Off |
Off |
On |
|
233MHz |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL MMX CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
166MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
233MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU SPEED SELECTION (AMD K5) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
133MHz |
On |
On |
Off |
|
166MHz |
On |
On |
On |
|
CPU SPEED SELECTION (AMD K5 CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
133MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
166MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU SPEED SELECTION (AMD K6) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
166MHz |
On |
Off |
On |
|
180MHz |
Off |
Off |
On |
|
200MHz |
Off |
Off |
On |
|
CPU SPEED SELECTION (AMD K6 CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
166MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
180MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
200MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU SPEED SELECTION (CX 6X86) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
120MHz |
On |
On |
Off |
|
133MHz |
On |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86 CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
120MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
133MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU SPEED SELECTION (CX MII) |
|||
|
Speed |
JP3 |
JP4 |
JP5 |
|
166MHz |
On |
Off |
On |
|
180MHz |
Off |
Off |
On |
|
200MHz |
Off |
Off |
On |
|
233MHz |
Off |
Off |
Off |
|
CPU SPEED SELECTION (CX MII CON'T) |
||||
|
Speed |
JP16 |
JP22 |
JP23 |
JP24 |
|
166MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
180MHz |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
200MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
233MHz |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Indicated pins are in the closed position. |
||||
|
CPU VOLTAGE SELECTION (SINGLE) |
|
|
Voltage |
JP12 |
|
3.3V |
Open |
|
3.4V |
Pins 1 & 2 closed |
|
3.5V |
Pins 3 & 4 closed |
|
CPU VOLTAGE SELECTION (DUAL) |
|
|
Voltage |
JP12 |
|
2.5V |
Pins 7 & 8 closed |
|
2.9V |
Pins 5 & 6 closed |
|
CPU TYPE SELECTION |
|
|
Type |
JP9 |
|
P54, P55 |
Pins 2 & 3 closed |
|
P55C (Dual Voltage) |
Pins 1 & 2 closed |
