DIAMOND FLOWER, INC.
P5BV3+ (REV.C+)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/CX 6X86L/CX 686MX/IBM 6X86MX/IDT C6/WINCHIP2/CX M1/CX M2/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/180/200/233/266/300/333/350/400 |
|
Chip Set |
VIA |
|
Maximum Onboard Memory |
384MB (SDRAM supported) |
|
Cache |
512KB/1024KB |
|
BIOS |
Award |
|
Dimensions |
Unidentified |
|
I/O Options (backplane) |
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot |
|

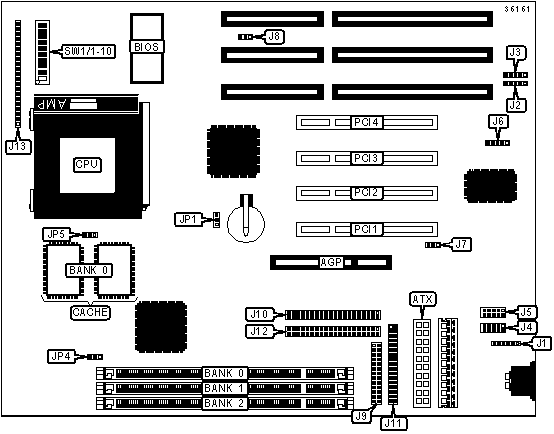

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
IDE interface 2 |
J10 |
|
ATX power connector |
ATX |
Floppy drive interface |
J11 |
|
PS/2 mouse interface |
J1 |
IDE interface 1 |
J12 |
|
USB connector 1 |
J2 |
ATX power standby LED |
J13/pins 1 & 2 |
|
USB connector 2 |
J3 |
ATX power switch |
J13/pins 3 & 4 |
|
Serial port 1 |
J4 |
IDE interface LED |
J13/pins 5 & 6 |
|
Serial port 2 |
J5 |
Green PC LED |
J13/pins 7 & 8 |
|
IR connector |
J6 |
Green PC switch |
J13/pins 9 & 10 |
|
AGP fan power |
J7 |
Reset switch |
J13/pins 11 & 12 |
|
CPU fan power |
J8 |
Speaker |
J13/pins 13 - 16 |
|
Parallel port |
J9 |
Power LED & keylock |
J13/pins 17 - 21 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
JP1 |
Pins 2 & 3 closed |
|
|
CMOS memory clear |
JP1 |
Pins 1 & 2 closed |
|
» |
SDRAM clock set to AGP clock |
JP4 |
Pins 1 & 2 closed |
|
|
SDRAM clock set to CPU clock |
JP4 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
DIMM CONFIGURATION (CON'T) |
|||
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
CPU SPEED SELECTION (INTEL) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
On |
Off |
Off |
|
120MHz |
60MHz |
2x |
Off |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
|
CPU SPEED SELECTION (INTEL, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
90MHz |
60MHz |
1.5x |
On |
On |
On |
|
100MHz |
66MHz |
1.5x |
On |
On |
On |
|
120MHz |
60MHz |
2x |
Off |
On |
On |
|
133MHz |
66MHz |
2x |
Off |
On |
On |
|
150MHz |
60MHz |
2.5x |
Off |
Off |
On |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
On |
|
CPU SPEED SELECTION (INTEL MMX) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
|
CPU SPEED SELECTION (INTEL MMX, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
On |
|
233MHz |
66MHz |
3.5x |
On |
On |
On |
|
CPU SPEED SELECTION (CX 6X86L) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
150MHz |
60MHz |
2x |
Off |
Off |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
|
200MHz |
75MHz |
2x |
On |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86L, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
150MHz |
60MHz |
2x |
Off |
On |
On |
|
166MHz |
66MHz |
2x |
Off |
On |
On |
|
200MHz |
75MHz |
2x |
Off |
On |
On |
|
CPU SPEED SELECTION (CX 6X86MX) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
166MHz |
60MHz |
2.5x |
Off |
Off |
Off |
|
200MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
Off |
On |
|
CPU SPEED SELECTION (CX 6X86MX, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
60MHz |
2.5x |
Off |
Off |
On |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
233MHz |
75MHz |
2.5x |
Off |
Off |
On |
|
266MHz |
83MHz |
2.5x |
Off |
Off |
On |
|
CPU SPEED SELECTION (CX M2) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
300MHz |
66MHz |
3.5x |
On |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
|
350MHz |
100MHz |
3x |
On |
On |
On |
|
400MHz |
100MHz |
3.5x |
On |
On |
On |
|
CPU SPEED SELECTION (CX M2, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
66MHz |
3.5x |
On |
On |
On |
|
300MHz |
75MHz |
3x |
On |
Off |
On |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
|
350MHz |
100MHz |
3x |
On |
Off |
On |
|
400MHz |
100MHz |
3.5x |
On |
On |
On |
|
CPU SPEED SELECTION (IBM) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
200MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
On |
Off |
On |
|
300MHz |
66MHz |
3.5x |
On |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
|
CPU SPEED SELECTION (IBM, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
233MHz |
75MHz |
2.5x |
Off |
Off |
On |
|
266MHz |
83MHz |
2.5x |
Off |
Off |
On |
|
300MHz |
66MHz |
3.5x |
On |
On |
On |
|
300MHz |
75MHz |
3x |
On |
Off |
On |
|
333MHz |
83MHz |
3x |
On |
Off |
On |
|
CPU SPEED SELECTION (AM K5) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
On |
Off |
Off |
|
120MHz |
60MHz |
2x |
Off |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
CPU SPEED SELECTION (AM K5, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
90MHz |
60MHz |
1.5x |
On |
On |
On |
|
100MHz |
66MHz |
1.5x |
On |
On |
On |
|
120MHz |
60MHz |
2x |
Off |
On |
On |
|
133MHz |
66MHz |
2x |
Off |
On |
On |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
CPU SPEED SELECTION (AM K6) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
166MHz |
66MHz |
2.5x |
On |
Off |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
|
266MHz |
66MHz |
4x |
On |
Off |
Off |
|
300MHz |
66MHz |
4.5x |
On |
Off |
Off |
|
CPU SPEED SELECTION (AM K6, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
On |
|
233MHz |
66MHz |
3.5x |
On |
On |
On |
|
266MHz |
66MHz |
4x |
Off |
On |
Off |
|
300MHz |
66MHz |
4.5x |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K6-2) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
200MHz |
100MHz |
2.5x |
On |
On |
On |
|
266MHz |
66MHz |
4x |
On |
Off |
Off |
|
300MHz |
66MHz |
4.5x |
On |
Off |
Off |
|
300MHz |
100MHz |
3x |
On |
On |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
|
333MHz |
99MHz |
3.5x |
Off |
On |
On |
|
350MHz |
100MHz |
3.5x |
On |
On |
On |
|
366MHz |
66MHz |
5.5x |
On |
Off |
Off |
|
380MHz |
96MHz |
4x |
Off |
On |
On |
|
400MHz |
100MHz |
4x |
On |
On |
On |
|
CPU SPEED SELECTION (AM K6-2, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
100MHz |
2.5x |
Off |
Off |
On |
|
266MHz |
66MHz |
4x |
Off |
On |
Off |
|
300MHz |
66MHz |
4.5x |
Off |
Off |
Off |
|
300MHz |
100MHz |
3x |
On |
Off |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
|
333MHz |
99MHz |
3.5x |
On |
On |
On |
|
350MHz |
100MHz |
3.5x |
On |
On |
On |
|
366MHz |
66MHz |
5.5x |
On |
On |
Off |
|
380MHz |
96MHz |
4x |
Off |
On |
Off |
|
400MHz |
100MHz |
4x |
Off |
On |
Off |
|
CPU SPEED SELECTION (IDT C6) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
180MHz |
60MHz |
3x |
Off |
Off |
Off |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
|
225MHz |
75MHz |
3x |
On |
On |
Off |
|
240MHz |
60MHz |
4x |
Off |
Off |
Off |
|
CPU SPEED SELECTION (IDT C6, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
On |
|
225MHz |
75MHz |
3x |
On |
Off |
On |
|
240MHz |
60MHz |
4x |
Off |
On |
Off |
|
CPU SPEED SELECTION (WINCHIP2) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
|
200MHz |
75MHz |
3x |
On |
Off |
Off |
|
225MHz |
75MHz |
3x |
On |
On |
Off |
|
240MHz |
60MHz |
4x |
Off |
Off |
Off |
|
266MHz |
83MHz |
3x |
On |
Off |
On |
|
300MHz |
100MHz |
3x |
On |
On |
On |
|
CPU SPEED SELECTION (WINCHIP2, CON'T) |
|||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
75MHz |
3x |
On |
Off |
On |
|
225MHz |
75MHz |
3x |
On |
Off |
On |
|
240MHz |
60MHz |
4x |
Off |
On |
Off |
|
266MHz |
83MHz |
3x |
On |
Off |
On |
|
300MHz |
100MHz |
3x |
On |
Off |
On |
|
CPU VOLTAGE SELECTION (DUAL) |
|||||
|
Voltage |
JP5 |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
2.0V |
Pins 1 & 2 closed |
On |
On |
On |
On |
|
2.1V |
Pins 1 & 2 closed |
Off |
On |
On |
On |
|
2.2V |
Pins 1 & 2 closed |
On |
Off |
On |
On |
|
2.3V |
Pins 1 & 2 closed |
Off |
Off |
On |
On |
|
2.4V |
Pins 1 & 2 closed |
On |
On |
Off |
On |
|
2.5V |
Pins 1 & 2 closed |
Off |
On |
Off |
On |
|
2.6V |
Pins 1 & 2 closed |
On |
Off |
Off |
On |
|
2.7V |
Pins 1 & 2 closed |
Off |
Off |
Off |
On |
|
2.8V |
Pins 1 & 2 closed |
On |
On |
On |
Off |
|
2.9V |
Pins 1 & 2 closed |
Off |
On |
On |
Off |
|
3.0V |
Pins 1 & 2 closed |
On |
Off |
On |
Off |
|
3.1V |
Pins 1 & 2 closed |
Off |
Off |
On |
Off |
|
3.2V |
Pins 1 & 2 closed |
On |
On |
Off |
Off |
|
3.4V |
Pins 2 & 3 closed |
On |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION (SINGLE) |
|||||
|
3.3V |
Pins 2 & 3 closed |
Off |
On |
Off |
Off |
|
3.5V |
Pins 2 & 3 closed |
Off |
Off |
Off |
Off |
