GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6RNEV (REV. 2.1)
| Device Type | Riser card |
| I/O Options | 32-bit PCI slots (2), floppy drive interface, IDE interface, riser slot, IR connector, USB connectors (2), ATX power connector, microphone in, audio in - CD-ROMs (3), wake-on-LAN connector, wake-on-modem connector |

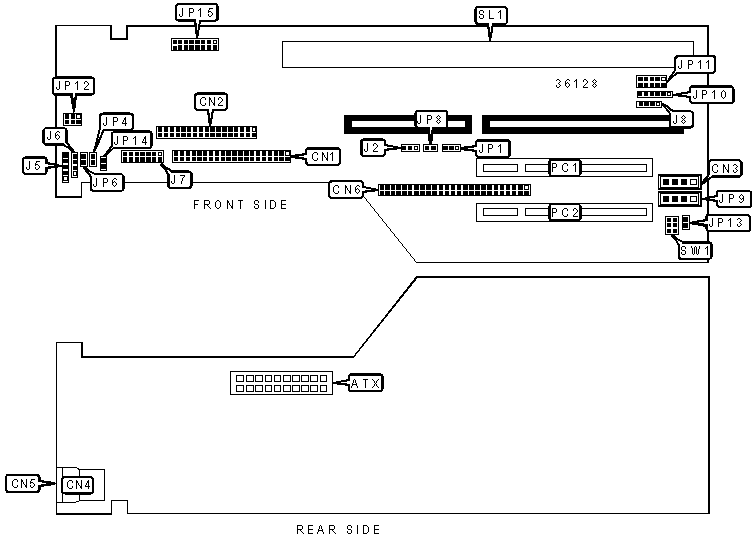

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Wake-on-LAN connector | JP4 |
| IDE interface 1 | CN1 |
Active LED | JP6 |
| Floppy drive interface | CN2 |
Wake-on-modem connector | JP8 |
| Audio in - CD-ROM | CN3 |
Audio in - CD-ROM | JP9 |
| USB connector 1 | CN4 |
Sound connector | JP10 |
| USB connector 2 | CN5 |
Sound connector | JP11 |
| Audio in - CD-ROM (slim) | CN6 |
USB connector | JP12 |
| Chassis fan power | J2 |
Case open connector | JP13 |
| IR connector | J5 |
Microphone in | JP14 |
| Speaker | J6 |
Front panel connector | JP15 |
| Front panel connector | J7 |
32-bit PCI slots | PC1 - PC2 |
| Volume connector | J8 |
Mainboard connector | SL1 |
| Wake on LAN connector | JP1 |
Case open connector | SW1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Speaker select internal | J6 |
Pins 1 & 2 closed |
| Speaker select external | J6 |
Closed |
|
