. GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6ZOZ
|
Device Type |
Mainboard |
|
Processor |
Pentium II /Celeron |
|
Processor Speed |
233/266/300/333/350/366/400/433/450/500/550/600/650MHz |
|
Chip Set |
Intel 440ZX |
|
Video Chip Set |
ATI |
|
Maximum Onboard Memory |
256MB ( SDRAM supported) |
|
Maximum Video Memory |
4MB |
|
Cache |
0/128/256/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
258mm x 206mm |
|
I/O Options |
Ethernet 10BaseT connector, parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2), SB-link connector |
.
|

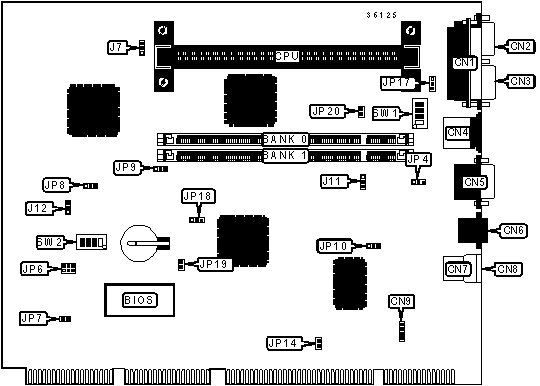

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
USB connector 2 |
CN8 |
|
Serial port 1 |
CN2 |
Modem connector |
CN9 |
|
VGA port |
CN3 |
CPU fan power |
J7 |
|
PS/2 mouse port |
CN4 |
Chassis fan power |
J12 |
|
Serial port 2 |
CN5 |
SB-link connector |
JP6 |
|
Ethernet 10BaseT connector |
CN6 |
Case open connector |
JP7 |
|
USB connector 1 |
CN7 |
STD LED |
JP19 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
LAN power disabled |
J11 |
Pins 2 & 3 closed |
|
|
LAN power enabled |
J11 |
Pins 1 & 2 closed |
|
» |
Keyboard power on disabled |
JP4 |
Pins 2 & 3 closed |
|
|
Keyboard power on enabled |
JP4 |
Pins 1 & 2 closed |
|
» |
VGA INT enabled |
JP8 |
Pins 2 & 3 closed |
|
|
VGA INT disabled |
JP8 |
Pins 1 & 2 closed |
|
» |
On board video enabled |
JP9 |
Pins 2 & 3 closed |
|
|
On board video disabled |
JP9 |
Pins 1 & 2 closed |
|
» |
On board LAN enabled |
JP10 |
Pins 2 & 3 closed |
|
|
On board LAN disabled |
JP10 |
Pins 1 & 2 closed |
|
|
Internal buzzer enabled |
JP14 |
Closed |
|
|
Internal buzzer disabled |
JP14 |
Open |
|
» |
CMOS memory normal operation |
JP18 |
Pins 2 & 3 closed |
|
|
CMOS memory clear |
JP18 |
Pins 1 & 2 closed |
|
|
Suspend to RAM enabled |
JP20 |
Closed |
|
|
Suspend to RAM normal operation |
JP20 |
Open |
|
DIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
DIMM CONFIGURATION (CON'T) |
||
|
Size |
Bank 0 |
Bank 1 |
|
128MB |
(1) 16M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
Note: Board accepts SDRAM memory. |
||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The location of the video memory is unidentified. |
|
CPU SPEED SELECTION (CELERON) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
On |
|
266MHz |
66MHz |
4x |
On |
Off |
Off |
On |
|
300MHz |
66MHz |
4.5x |
On |
Off |
Off |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
On |
|
366MHz |
66MHz |
5.5x |
On |
Off |
Off |
On |
|
400MHz |
66MHz |
6x |
On |
Off |
Off |
On |
|
433MHz |
66MHz |
6.5x |
On |
Off |
Off |
On |
|
CPU SPEED SELECTION (CELERON, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
On |
On |
|
266MHz |
66MHz |
4x |
On |
On |
Off |
On |
|
300MHz |
66MHz |
4.5x |
Off |
On |
Off |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
On |
|
366MHz |
66MHz |
5.5x |
Off |
Off |
Off |
On |
|
400MHz |
66MHz |
6x |
On |
On |
On |
Off |
|
433MHz |
66MHz |
6.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (PENTIUM II) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
On |
|
266MHz |
66MHz |
4x |
On |
Off |
Off |
On |
|
300MHz |
66MHz |
4.5x |
On |
Off |
Off |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
On |
|
350MHz |
100MHz |
3.5x |
Off |
Off |
Off |
Off |
|
366MHz |
66MHz |
5.5x |
On |
Off |
Off |
On |
|
400MHz |
66MHz |
6x |
On |
Off |
Off |
On |
|
400MHz |
100MHz |
4x |
Off |
Off |
Off |
Off |
|
433MHz |
66MHz |
6.5x |
On |
Off |
Off |
On |
|
450MHz |
100MHz |
4.5x |
Off |
Off |
Off |
Off |
|
500MHz |
100MHz |
5x |
Off |
Off |
Off |
Off |
|
550MHz |
100MHz |
5.5x |
Off |
Off |
Off |
Off |
|
600MHz |
100MHz |
6x |
Off |
Off |
Off |
Off |
|
650MHz |
100MHz |
6.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (PENTIUM II, CON'T) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
On |
On |
|
266MHz |
66MHz |
4x |
On |
On |
Off |
On |
|
300MHz |
66MHz |
4.5x |
Off |
On |
Off |
On |
|
333MHz |
66MHz |
5x |
On |
Off |
Off |
On |
|
350MHz |
100MHz |
3.5x |
Off |
Off |
On |
On |
|
366MHz |
66MHz |
5.5x |
Off |
Off |
Off |
On |
|
400MHz |
66MHz |
6x |
On |
On |
On |
Off |
|
400MHz |
100MHz |
4x |
On |
On |
Off |
On |
|
433MHz |
66MHz |
6.5x |
Off |
On |
On |
Off |
|
450MHz |
100MHz |
4.5x |
Off |
On |
Off |
On |
|
500MHz |
100MHz |
5x |
On |
Off |
Off |
On |
|
550MHz |
100MHz |
5.5x |
Off |
Off |
Off |
On |
|
600MHz |
100MHz |
6x |
On |
On |
On |
Off |
|
650MHz |
100MHz |
6.5x |
Off |
On |
On |
Off |
|
CPU OVER CLOCK SELECTION |
||
|
Speed |
JP17 |
|
|
» |
100MHz normal |
Pins 2 & 3 closed |
|
|
100MHz turbo & other frequencies |
Pins 1 & 2 closed |
