MICRON ELECTRONICS, INC.
ENDEAVOR
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440EX |
| Video Chip Set | NVIDIA Corporation |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Unidentified |
| Dimensions | 244mm x 244mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (2), ATX power connector, Audio in - CD-ROM, Auxiliary audio in, Chassis intrusion connector, Floppy drive interface, Game/MIDI port, IDE interfaces (2), Line in, Line out, Microphone in, Modem interface, Parallel port, PS/2 keyboard port, PS/2 mouse port, Serial port, Telephony audio in, USB ports (2), VIP interface, VGA port, Wake-on-LAN connector |

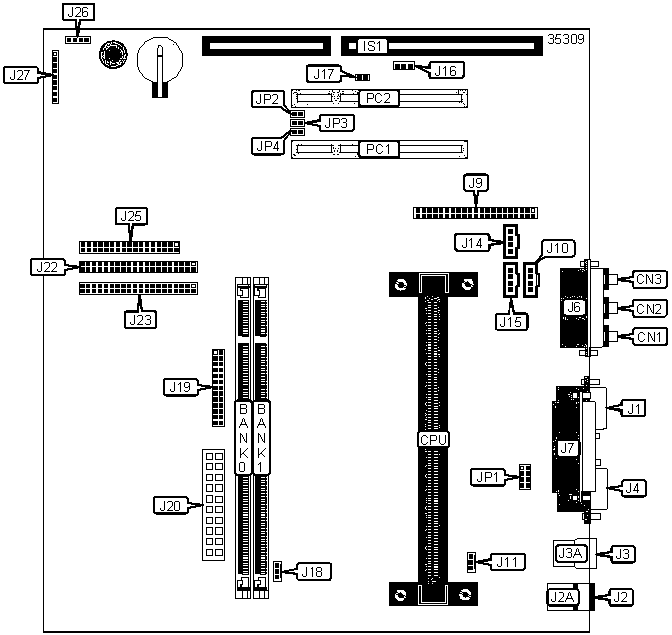

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Line out | CN1 | CPU fan power | J11 |
| Line in | CN2 | Auxiliary audio in | J14 |
| Microphone in | CN3 | Audio in - CD-ROM | J15 |
| 16-bit ISA slot | IS1 |
Wake-on-LAN connector | J16 |
| VGA port | J1 | Chassis intrusion connector | J17 |
| PS/2 keyboard port | J2 | Chassis fan power | J18 |
| PS/2 mouse port | J2A | VIP interface | J19 |
| USB port 1 | J3 | ATX power connector | J20 |
| USB port 2 | J3A | IDE interface 2 | J22 |
| Serial port | J4 | IDE interface 1 | J23 |
| Game/MIDI port | J6 | Floppy drive interface | J25 |
| Parallel port | J7 | Unidentified | J26 |
| Modem interface | J9 | I/O interface | J27 |
| Telephony audio in | J10 |
32-bit PCI slots | PC1 - PC2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Password normal operation | JP2 | Open |
|
Password clear | JP2 |
Closed |
» |
Boot block normal mode | JP3 |
Open |
| Boot block recovery mode | JP3 | Closed | |
| » | Factory configured - do not alter | JP4 | Unidentified |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. |
CPU SPEED SELECTION |
|||||
CPU Speed |
JP1/Pins 1 & 2 |
JP1/Pins 3 & 4 |
JP1/Pins 5 & 6 |
JP1/Pins 7 & 8 |
|
| 233MHz | Closed | Open | Closed | Open | |
| » | 266MHz | Open | Closed | Closed | Closed |
| 300MHz | Open | Closed | Closed | Open |
|
| 333MHz | Open | Open | Closed | Closed | |
