QDI COMPUTER, INC.
ADVANCE 5
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/400/450/500/550/600/650/700/750/800MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), AGP slot, ATX power connector, Green PC connector, IDE interfaces (2), IR connector, Parallel port, PS/2 keyboard port, PS/2 mouse port, Serial ports (2), USB ports (2), Wake-on LAN connector, Wake-on Modem connector |

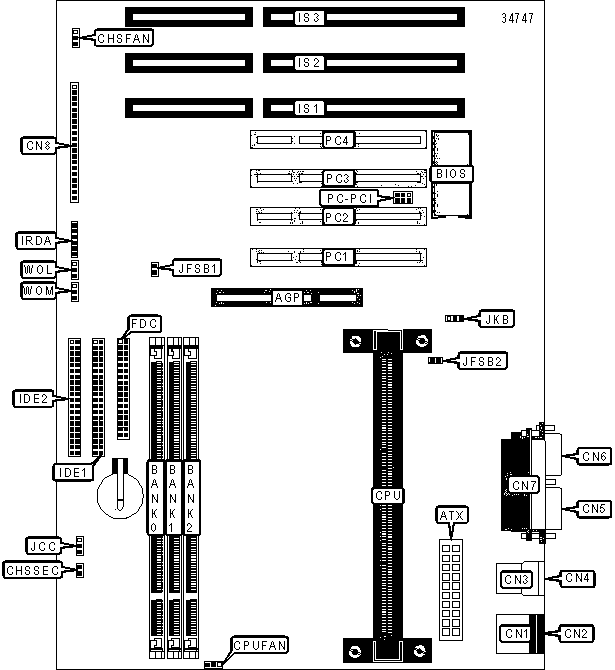

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Speaker | CN8/Pins 5 - 8 |
| ATX power connector | ATX |
Power switch | CN8/Pins 9 & 10 |
| Chassis fan power | CHSFAN | Power LED & keylock | CN8/Pins 11 - 15 |
| Chassis intrusion connector | CHSSEC | Green PC LED | CN8/Pins 16 - 18 |
| CPU fan power | CPUFAN | Green PC connector | CN8/Pins 19 & 20 |
| PS/2 mouse port | CN1 | Floppy drive interface | FDC |
| PS/2 keyboard port | CN2 | IDE interface 1 | IDE1 |
| USB port 1 | CN3 | IDE interface 2 | IDE2 |
| USB port 2 | CN4 | IR connector | IRDA |
| Serial port 1 | CN5 | 16-bit ISA slots | IS1 - IS3 |
| Serial port 2 | CN6 | Sound connector | PC-PCI |
| Parallel port | CN7 | 32-bit PCI slots | PC1 - PC4 |
| IDE interface LED | CN8/Pins 1 & 2 | Wake-on-LAN connector | WOL |
| Reset switch | CN8/Pins 3 & 4 | Wake-on-modem connector | WOM |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JCC |
Pins 2 & 3 closed |
| CMOS memory clear | JCC |
Pins 1 & 2 closed |
|
| » | Automatic front side bus speed selected | JFSB1 |
Closed |
| 100MHz front side bus speed selected | JFSB1 |
Open |
|
» |
Factory configured - do not alter | JFSB2 |
Unidentified |
| Keyboard password/Power on enabled | JKB | Pins 1 & 2 closed | |
| Keyboard password/Power on disabled | JKB | Pins 2 & 3 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
8MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
40MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
