INDUSTRIAL COMPUTER SOURCE
WINCOMM8/B, WINCOMM8/B-650
| Card Type | Serial controller |
| Maximum Onboard Memory | Unidentified |
| I/O Options | DB-78 connector |
| Data Bus | 16-bit ISA |

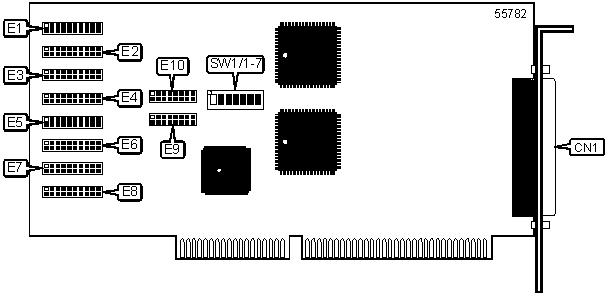

CONNECTIONS |
|
Function |
Label |
| DB-78 connector | CN1 |
ADDRESS SELECTION |
|||||||
A ddress |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
1 00h |
On | On | On | On | Off | On | On |
| 180h | On | On | On | On | Off | Off | On |
| 240h | On | On | On | Off | On | On | Off |
| 280h | On | On | On | Off | On | Off | On |
| 2C0h | On | On | On | Off | On | Off | Off |
| 300h | On | On | On | Off | Off | On | On |
| 500h | On | On | Off | On | Off | On | On |
| 580h | On | On | Off | On | Off | Off | On |
| 1500h | Off | On | Off | On | Off | On | On |
| 1580h | Off | On | Off | On | Off | Off | On |
I RQ SELECTION (PORT 1) |
|
IRQ |
E1 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 2) |
|
IRQ |
E2 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 3) |
|
IRQ |
E3 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 4) |
|
IRQ |
E4 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 5) |
|
IRQ |
E5 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 6) |
|
IRQ |
E6 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 7) |
|
IRQ |
E7 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
I RQ SELECTION (PORT 8) |
|
IRQ |
E8 |
2 |
Pins 1 & 2 closed |
3 |
Pins 3 & 4 closed |
| 4 | Pins 5 & 6 closed |
| 5 | Pins 7 & 8 closed |
| 6 | Pins 9 & 10 closed |
| 7 | Pins 11 & 12 closed |
| 10 | Pins 13 & 14 closed |
| 11 | Pins 15 & 16 closed |
| 12 | Pins 17 & 18 closed |
| 15 | Pins 19 & 20 closed |
| INTERRUPT MODE SELECTION | ||
| Setting | E9 | E10 |
| Normal IRQ mode | Pins 1 & 3, 2 & 4, 9 & 11, 10 & 12 closed | Pins 1 & 3, 2 & 4, 9 & 11, 10 & 12 closed |
| Shared IRQ mode | Pins 3 & 5, 6 & 7, 11 & 13, 14 & 16 closed | Pins 3 & 5, 6 & 7, 11 & 13, 12 & 14 closed |
| Sharing IRQs with other adapters | Pins 3 & 5, 6 & 7, 11 & 13, 12 & 14 closed | Pins 3 & 5, 6 & 7, 11 & 13, 12 & 14 closed |
