DIGI INTERNATIONAL, INC.
PC/4E, PC/8E
| Card Type | Serial controller |
| Maximum Onboard Memory | Unidentified |
| I/O Options | Serial port |
| Data Bus | 16-bit ISA |

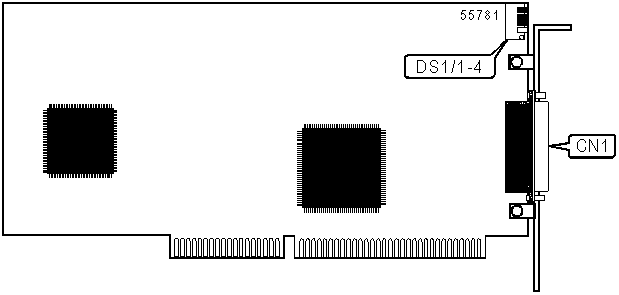

CONNECTIONS |
|
Function |
Label |
| Serial port | CN1 |
BASE I/O ADDRESS SELECTION |
||||
Setting |
DS1/1 | DS1/2 | DS1/3 | DS1/4 |
1 00h-103h |
Off | Off | On | On |
| 110h-113h | Off | On | Off | On |
| 120h-123h | Off | On | On | On |
| 200h-203h | On | Off | Off | On |
| 220h-223h | On | Off | On | On |
| 300h-303h | On | On | Off | On |
| 320h-323h | On | On | On | On |
