KYE INTERNATIONAL CORPORATION
OPL3-SAX
| Card Type | Sound card |
| Video Chip Set | Yamaha |
| Data Bus | 16-bit ISA |

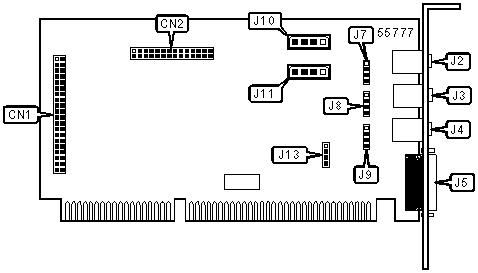

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| IDE interface | CN1 | Internal line out connector | J7 |
| Wavetable connector | CN2 | Internal line in connector | J8 |
| Line out | J2 | Internal connector for mic in | J9 |
| Line in | J3 | Audio-in CD-ROM (ATAPI) | J10 |
| Microphone in | J4 | Audio-in CD-ROM (JST) | J11 |
| Game port | J5 | Voice modem connector | J13 |
