KYE INTERNATIONAL CORPORATION
OPL3-SAX (Amplifier)
| Card Type | Sound card |
| Chip Set | Yamaha |
| Data Bus | 16-bit ISA |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| IDE interface | CN1 | Line in | J3 |
| Wavetable connector | CN2 | Microphone in | J4 |
| Line out | J2 | Game port | J5 |

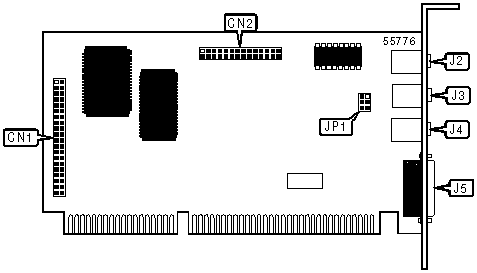

USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Power amplifier enabled | JP1 | Pins 2 & 3, 5 & 6 closed |
| Power amplifier disabled | JP1 | Pins 1 & 2, 4 & 5 closed | |
