AAEON TECHNOLOGY, INC.
PCM-3200
| Card Type | Sound card |
| Audio Chip Set | Yamaha |
| I/O Options | Audio in - CD-ROMs (2), game/MIDI port, line in, line out, microphone in, modem interface connector, mono input connector, Wave Blaster/MIDI extension connector |
| Data Bus | PC/104 (16-bit) |

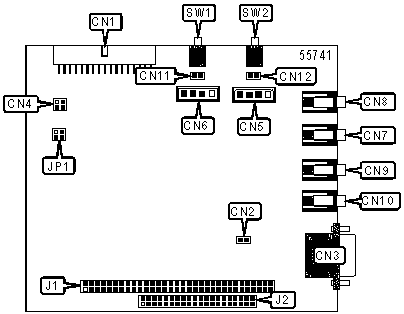

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Wave Blaster/MIDI extension connector | CN1 | Line out | CN8 |
| Modem interface connector | CN2 | Speaker | CN9 |
| Game/MIDI port | CN3 | Microphone in | CN10 |
| Mono Input connector | CN4 | Volume Control-Up Header | CN11 |
| Audio in - CD-ROM (Panasonic) | CN5 | Volume Control-Down Header | CN12 |
| Audio in - CD-ROM (Mitsumi) | CN6 | PC/104 connector (8-bit) | J1 |
| Line in | CN7 | PC/104 connector (16-bit) | J2 |
V OLUME CONTROL |
||
| Volume | SW1 | SW2 |
I ncrease 1.5dB |
Push |
N/A |
| Decrease 1.5dB | N/A |
Push |
| Mute | Push | Push |
