SBS BIT 3 OPERATIONS
200-2
| Card Type | PCI Host card |
| I/O Options | Proprietary connector |
| Data Bus | 64-bit PCI |
CONNECTIONS |
|
Function |
Label |
| Proprietary connector | CN1 |

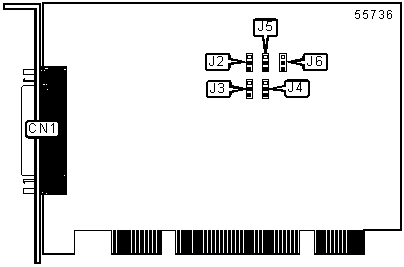

USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | J2 | Pins 2 & 3 closed |
| » | Factory configured - do not alter | J3 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | J4 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | J5 | Pins 2 & 3 closed |
| » | Factory configured - do not alter | J6 | Pins 2 & 3 closed |
