CORECO, INC.
PYTHON/C6
| Card Type | Digital I/O card |
| Chip Set | Intel/TI (4 DSPs) |
| Maximum Onboard Memory | 64MB SDRAM (EDO supported) |
| I/O Options | Serial interfaces (8), auxiliary bus connector |
| Data Bus | 32-bit PCI |

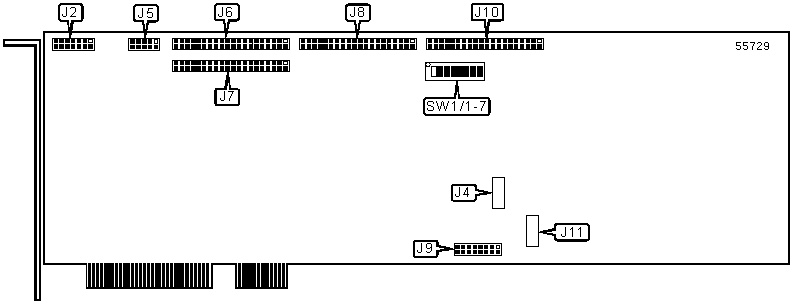

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| DSP Emulator | J2 | Auxiliary bus connector | J8 |
| Reserved | J4 | i960 Emulator connector | J9 |
| Serial interface | J5 | Auxiliary bus connector | J10 |
| Serial interface and timers | J6 | Reserved | J11 |
| Serial interface and timers | J7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | i960 boots from application | SW1/6 | Off |
| i960 boots from boot block | SW1/6 | On | |
| » | PCI-PCI bridge device | SW1/7 | Off |
| Multimedia device | SW1/7 | On | |
| » | Factory configured - do not alter | SW1/8 | Off |
CONFIGURATION WITH ONE OR MORE PYTHONS |
||||||
Setting |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
SW1/5 |
|
| » | Single Python | Off | On | Off | On | On |
| » | Master in 2 or 3 Python chain | Off | On | Off | On | On |
| Slave(s) in 2 or 3 Python chain | On | Off | Off | On | Off | |
CONFIGURATION WITH COBRA |
||||||
Setting |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
SW1/5 |
|
| Master Python | On | Off | Off | On | Off | |
| Slave Python | On | Off | Off | On | Off | |
CONFIGURATION WITH VIPER-RGB |
||||||
Setting |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
SW1/5 |
|
| Master Python | On | Off | Off | On | Off | |
| Slave Python | On | Off | Off | On | Off | |
CONFIGURATION WITH VIPER DIGITAL |
||||||
Setting |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
SW1/5 |
|
| » | Master Python | Off | On | Off | On | On |
| Master Python with slave Python present | On | Off | Off | On | Off | |
| » | Slave Python | Off | On | Off | On | On |
CONFIGURATION WITH VIPER QUAD |
||||||
Setting |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
SW1/5 |
|
| » | Master Python | Off | On | Off | On | On |
| Master Python with slave Python present | On | Off | Off | On | Off | |
| » | Slave Python | Off | On | Off | On | On |
