AZTECH LABS, INC.
PCI 368DSP
| Card Type | Sound card |
| Chipset | Unidentified |
| I/O Options | MIDI/game port, line in, line out, microphone in, wavetable connector, audio in CD-ROMs (2), TAD connector, Aux connector. PCPCI connector |
| Data Bus | 32-bit PCI |

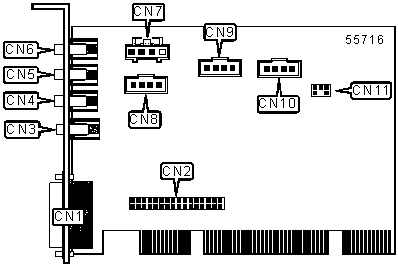

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Game/MIDI port | CN1 | Audio in CD-ROM (MPC) | CN7 |
| Wavetable connector | CN2 | Audio in CD-ROM | CN8 |
| Line out | CN3 | Aux connector | CN9 |
| Headphone | CN4 | TAD connector | CN10 |
| Microphone in | CN5 | PCPCI connector | CN11 |
| Line in | CN6 | ||
