AZTECH LABS, INC.
PCI 168AP, PCI 168AP(W)
| Card Type | Sound card |
| Chipset | Unidentified |
| I/O Options | MIDI/game port, line in, line out, microphone in, audio in CD-ROM, TAD connector, Aux connector, speaker out, video connector |
| Data Bus | 32-bit PCI |

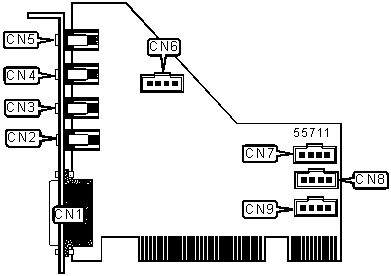

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Game/MIDI port | CN1 | Audio in CD-ROM | CN6 |
| Speaker out | CN2 | TAD connector | CN7 |
| Line out | CN3 | Aux connector | CN8 |
| Microphone in | CN4 | Video connector | CN9 |
| Line in | CN5 | ||
