AZTECH LABS, INC.
PCI 288-Q3D II
| Card Type | Sound card |
| Chipset | QSound Labs, Inc. |
| I/O Options | MIDI/game port, SPDIF out, line in, line out (2), microphone in, wavetable connector, audio in CD-ROM, TAD connector, Aux connector |
| Data Bus | 32-bit PCI |

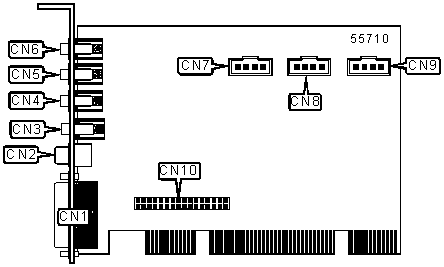

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Game/MIDI port | CN1 | Microphone in | CN6 |
| SPDIF out | CN2 | audio in CD-ROM | CN7 |
| Line out (front) | CN3 | Aux connector | CN8 |
| Line out (rear) | CN4 | TAD connector | CN9 |
| Line in | CN5 | Wavetable connector | CN10 |
