SEANIX TECHNOLOGY, INC.

ASI ROCKET-550 VIDEO & MULTI I/O

Card Type Multifunction video and I/O card
Chip Set Proprietary
Video Chip Set Western Digital
Max Video Resolution 1280 x 1024
I/O Options IDE interface, Floppy drive connector, VESA Local Bus connector, Game interface, Serial interfaces (2)
Data Bus VESA

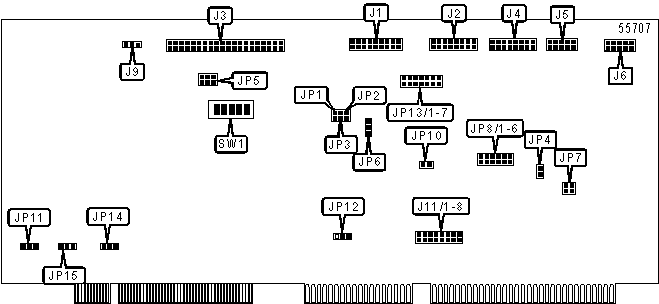

CONNECTIONS

Function

Label

Function

Label

Floppy drive interface

J1

 Serial interface 2 J5
VESA Local Bus connector

J2

 Serial interface 1 J6
IDE drive interface J3 Unidentified J9
Game interface J4


USER CONFIGURABLE SETTINGS

Setting

Label

Position

» RAMDAC ATT20C490 selected JP4 Closed
  RAMDAC SCI150025CV selected JP4 Open
» Text 60Hz scan rate JP5 Pins 1 & 2 closed
  Text 72Hz scan rate JP5 Pins 1 & 2 open
» Local bus zero wait state JP5 Pins 3 & 4 closed
  Local bus one wait state JP5 Pins 3 & 4 open
» Game port enabled JP6 Pins 2 & 3 closed
  Game port disabled JP6 Pins 1 & 2 closed
» FDC enabled JP7/2 Open
  FDC disabled JP7/2 Closed
» Onboard FDC selected JP12 Pins 2 & 3 closed
  Offboard FDC selected JP12 Pins 1 & 2 closed
» Factory configured - do not alter JP13/1 Open
» Factory configured - do not alter JP13/2 Open
» Factory configured - do not alter JP13/3 Open
» Primary IDE setting (1F0h) JP13/6 Open
  Secondary IDE setting (170h) JP13/6 Closed
» Local Bus speed set to 33MHz JP13/7 Closed
  Local Bus speed set to > 33MHz JP13/7 Open
» VL bus disconnected JP14 Pins 1 & 2 closed
  VL bus connected JP14 Pins 2 & 3 closed
» For 486 system JP15 Pins 2 & 3 closed
  For 386 system JP15 Pins 1 & 2 closed
» Standard IBM text mode SW1/5 Off
  TUV text mode SW1/5 On


VGA CLOCK FREQUENCY SELECTOR

Clock Speed

 JP1 JP2 JP3
  40MHz Open Closed Closed
  45MHz Open Open Open
» 50MHz Closed Open Closed
  60MHz Closed Closed Open


FLOOPY ADDRESS SELECTION

Address

 JP7/1
» 3F0h Closed
  370h Open


PARALLEL PORT ADDRESS SELECTION

Address

 JP8/5 JP8/6
» LPT1 (378h) Open Closed
  LPT2 (278h) Closed Open
  LPT3 (3BCh) Open Open
  Disabled Closed Closed


SERIAL PORT 1 ADDRESS SELECTION

Address

 JP8/1 JP8/2
» COM1 (3F8h) Open Closed
  COM3 (3E8h) Closed Open
  COM4 (2E8h) Open Open
  Disabled Closed Closed


SERIAL PORT 2 ADDRESS SELECTION

Address

 JP8/3 JP8/4
» COM2 (2F8h) Open Closed
  COM4 (2E8h) Closed Open
  COM3 (3E8h) Open Open
  Disabled Closed Closed


IDE MODE SELECTION

Mode

 JP13/4 JP13/5
» Mode 0 Closed Closed
  Mode 1 Closed Open
  Mode 2 Open Closed
  Mode 3 Open Open


SERIAL PORT 1 INTERRUPT SELECTION

IRQ

 J11/1 J11/2 J11/3
» IRQ4 Closed Open Open
  IRQ3 Open Closed Open
  IRQ5 Open Open Closed


SERIAL PORT 2 INTERRUPT SELECTION

IRQ

 J11/4 J11/5 J11/6
» IRQ3 Closed Open Open
  IRQ4 Open Closed Open
  IRQ5 Open Open Closed


PARALLEL PORT MODE SELECTION

Setting

 JP10
» Uni-directional Closed
  Bi-directional (EPP/ECP) Open


WAIT STATE SELECTION

Setting

 JP11
» 0 Pins 1 & 2 closed
  1 Pins 2 & 3 closed


VL-BUS SPEED SELECTION

Setting

 JP5/Pins 5 & 6
» <=33MHz Closed
  >33MHz Open



SUPER VGA SCAN RATE SELECTION (800x600)

Rate

 SW1/1 SW1/2
56Hz Off Off
60Hz Off On
72Hz On Off


SUPER VGA SCAN RATE SELECTION (1024x768)

Rate

 SW1/3 SW1/4
60Hz Off On
70Hz On Off
72Hz On On
86Hz Off Off
