SBE, INC.
WSU-423R
| Card Type | Misc I/O Card |
| Chip Set | Proprietary |
| Hard Drives supported | Up to 15 SCSI drives |
| Floppy Drives supported | Unidentified |
| Data Bus | Proprietary |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |

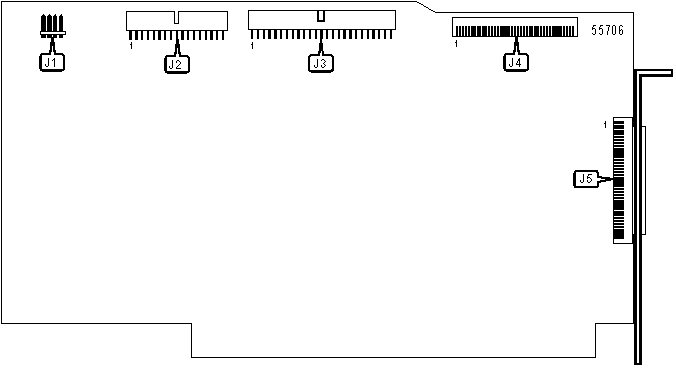

| LED connector | J 1 |
Internal Wide SCSI-3 connector 1 | J4 |
| Floppy drive interface | J2 | External Wide SCSI-3 connector 2 | J5 |
| SCSI connector | J3 | ||
M ISCELLANEOUS TECHNICAL NOTE |
| Note: There could be up to two SCSI connectors used at any given time. |
