DIGI INTERNATIONAL, INC.

SYNCPORT MC
Card Type Digital I/O card
Chip Set Unidentified
Maximum Onboard Memory Unidentified
Data Bus 16-bit MCA, 32-bit MCA


CONNECTIONS

Function

Label

Function

Label

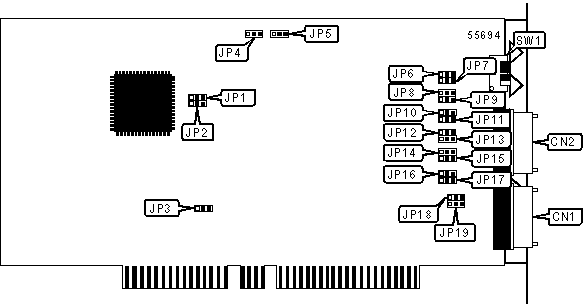

WAN connector - Line 1

CN1

 WAN connector - Line 2

CN2


USER CONFIGURABLE SETTINGS

Function

Label

Position
» Factory setting - Do not configure

JP3

Pins 1 & 2 closed


BASE I/O ADDRESS SELECTION

Setting

SW1/1

SW1/2

SW1/3

SW1/4
  108h

On

On

Off

Off
  118h

On

Off

On

Off
  128h

On

Off

Off

Off
  208h

Off

On

On

Off
  228h

Off

On

Off

Off
  308h

Off

Off

On

Off
» 328h

Off

Off

Off

Off


WAN INTERFACE PROTOCOL SELECTION: LINE 1

Protocol

JP4

JP6

JP8

JP10

JP12

JP14

JP16

JP18

JP20
V.11

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
V.24

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3
V.35

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3
V.36

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: Designated pins are in the closed position.


WAN INTERFACE PROTOCOL SELECTION: LINE 2
Protocol

JP3

JP5

JP7

JP9

JP11

JP13

JP15

JP17

JP19
V.11

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
V.24

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3
V.35

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3
V.36

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2
Note: Designated pins are in the closed position.
