SEALEVEL SYSTEMS, INC.
COMM+8.PCI
| Card Type | Serial card |
| Chip Set | Unidentified |
| Maximum Onboard Memory | Unidentified |
| I/O Options | Serial ports (8) |
| Data Bus | 32-bit PCI |

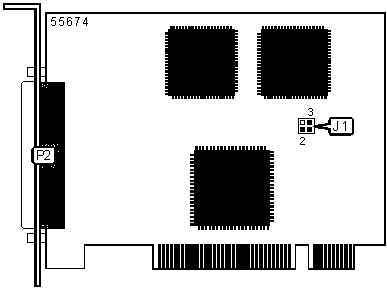

CONNECTIONS |
|
Function |
Label |
| Serial ports via DB-78 connector | P2 |
| Note: The DB-78 port connects to a proprietary spider cable which allows 8 DB-25 serial ports. | |
USER CONFIGURABLE SETTINGS |
||
Function |
Label |
Position |
Divide 1 clocking mode |
J1 |
Pins 1 & 2 closed |
| Divide 4 clocking mode | J1 |
Pins 3 & 4 closed |
