AAEON TECHNOLOGY, INC.
PCM-3110B
| Card Type | PCMCIA Drive Module |
| Boot ROM | Available |
| I/O Options | PCMCIA Type I/PCMCIA Type II/PCMCIA Type III/50-pin connectors (2) |
| Data Bus | PC/104 (16-bit) |

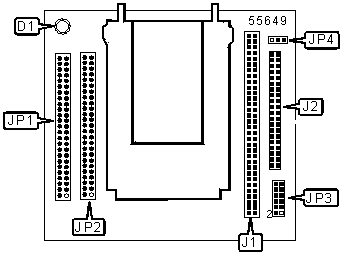

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| PC/104 connector (8-bit) | J1 | 50-pin connector | JP1 |
| PC/104 connector (16-bit) | J2 | 50-pin connector | JP2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Data not loaded to Flash ROM | JP3 | Pins 1 & 2 open |
| Load data to Flash ROM | JP3 | Pins 1 & 2 closed | |
| » | Boot ROM enabled |
JP3 | Pins 3 & 4 closed |
| Boot ROM disabled | JP3 | Pins 3 & 4 open | |
| » | Read from Boot ROM | JP4 | Pins 1 & 2 closed |
| Write to Boot ROM | JP4 | Pins 2 & 3 closed | |
BIOS ADDRESS SELECTION |
||
Selection |
JP3 | |
C8000-CFFF |
Pins 5 & 6 closed | |
| » | D8000-DFFF |
Pins 7 & 8 closed |
E0000-E7FFF |
Pins 9 & 10 closed | |
| E8000-EFFFF | Pins11 & 12 closed | |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| D1 | Red |
On |
Unidentified (busy LED) |
