AAEON TECHNOLOGY, INC.
PCM-3111
| Card Type | PCMCIA Drive Module |
| I/O Options | PCMCIA Type I/PCMCIA Type II/PCMCIA Type III/80-pin flat cable connector |
| Data Bus | PC/104 (16-bit) |

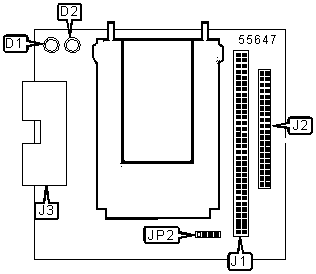

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| PC/104 connector (8-bit) | J1 | 80-pin flat cable connector | J3 |
| PC/104 connector (16-bit) | J2 | Power connector | JP2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| D1 | Yellow |
On |
Unidentified (battery LED) |
| D2 | Red |
On |
Drive activity detected |
| D2 | Red |
Off |
No drive activity detected |
MISCELLANEOUS TECHNICAL NOTES |
This module either connects to Aaeon's 3110 PCMCIA module or to a carrier board. |
